Orion Fans

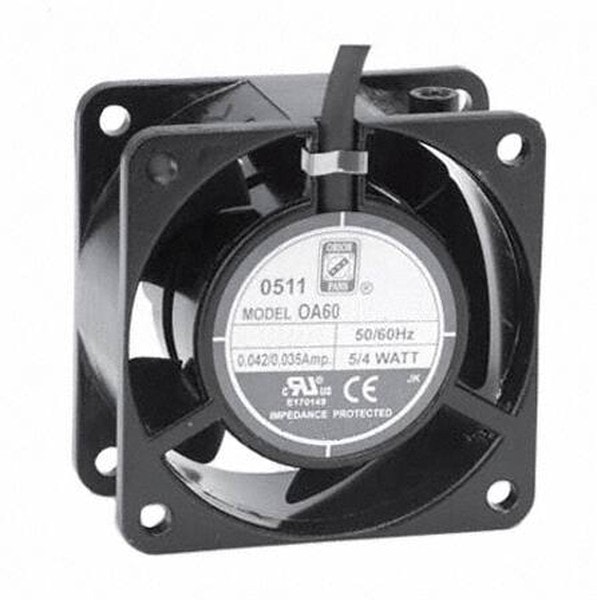

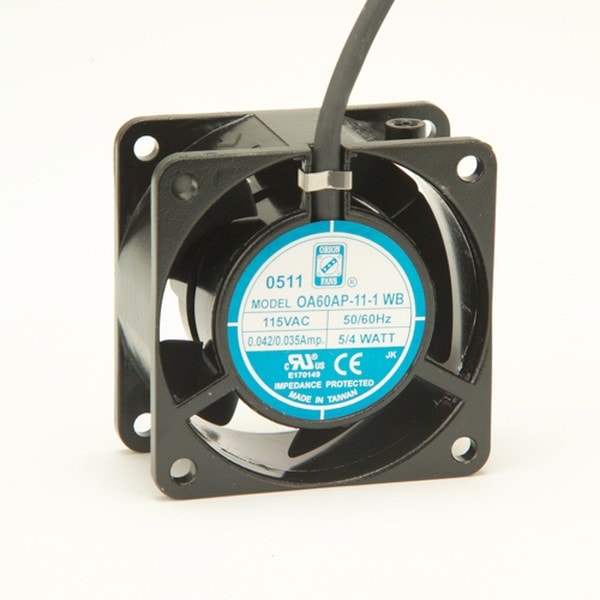

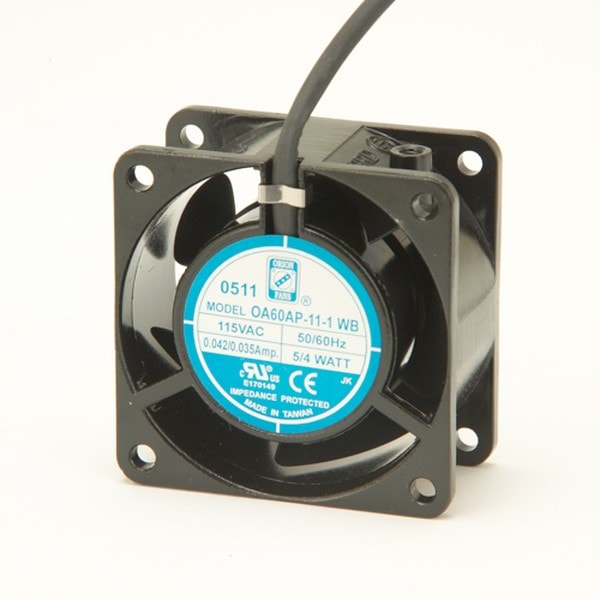

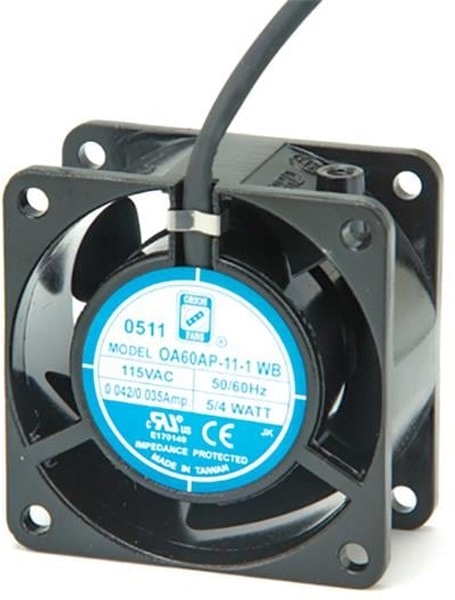

8006182607 OA60AP-11-1WB, Fan Tubeaxial 115VAC Square — 60mm L x 60mm H Ball 11.0 CFM (0.308m³/min) 2 Wire Leads Hirschmann
5360,00 ₽
Описание
Fan Tubeaxial 115VAC Square — 60mm L x 60mm H Ball 11.0 CFM (0.308mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 4 |
| Fan Type | Tubeaxial |
| Mounting | Flange Mount |
| Noise Level | 28 dB |
| Series | OA60AP |
| Special Features | High Speed |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 115 |
| Толщина,мм | 30 |
| Brand | Orion Fans |
| Manufacturer | Orion Fans |
| Product Category | AC Fans |
| Product Type | AC Fans |
| Subcategory | Fans, Blowers & Accessories |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Current Type | AC |
| Factory Pack Quantity: Factory Pack Quantity | 1 |
| Power Rating | 4 W |
| Termination Style | Wire Leads |
| Type | Axial |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 60000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Aluminum |
| Operating Temperature | -4 ~ 176В°F(-20 ~ 80В°C) |
| Size / Dimension | Square-60mm L x 60mm H |
| Termination | 2 Wire Leads |
| Width | 30.00mm |
| Category | AC Fan |
| COO | TW |
| Housing Material | Die-Cast Aluminum |
| Maximum Airflow | 11 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 115 V |
| Единица измерения | шт |
| Static Pressure | 0.11 in H2O(27.4 Pa) |
| Pressure Type | 0.11 in H2O |
| Ток,А | 0.06 |
| Частота вращения,об./мин. | 3100 |
| Производительность,м.куб./мин. | 11 |
| Шум, дБA | 28 |
| Automotive | Unknown |
| Part Status | Active |
| PPAP | Unknown |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Pressure | 0.06inH2O|0.1inH2O |
| Minimum Operating Temperature (°C) | -40 |
| Protection | Impedance |
| Shape | Square |
| Voltage Range | 80 ~ 130VAC |
| Life | 60000 Hour |
| Size (Metric) (mm) | 60 X 60 X 30 |
| Operating Input Voltage Range (V) | 105 to 130 |
Детали
| Бренд | Orion Fans |
|---|
