Sanyo Denki

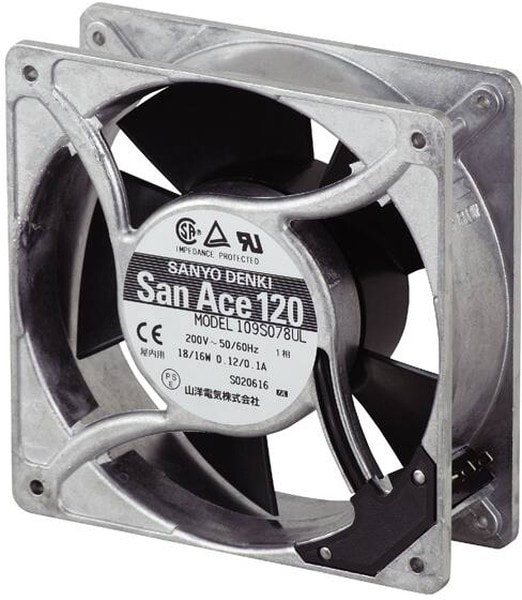

8006388769 109S078UL, AC Fans AC Axial Fan, 120x120x38mm, 200VAC, San Ace Hirschmann
11210,00 ₽
Описание
Fan Tubeaxial 200VAC Square — 119mm L x 119mm H Ball 102.5 CFM (2.87mВі/min) 2 Terminals
| Fan Type | Tubeaxial |
| Series | San Ace 120-> |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 200 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Approval Agency | CE, CSA, PSE, TUV, UL |
| Lifetime @ Temp. | 25000 Hrs @ 60В°C |
| Material — Blade | Plastic |
| Material — Frame | Aluminum |
| Operating Temperature | -22 ~ 140В°F(-30 ~ 60В°C) |
| Size / Dimension | Square-119mm L x 119mm H |
| Termination | 2 Terminals |
| Weight | 1.2 lbs(544.3 g) |
| Width | 38.00mm |
| Current Rating (Amps) | 0.140A |
| Static Pressure | 0.276 in H2O(68.7 Pa) |
| Video File | Summary of SanAce Cooling SystemsSanAce Server Coo |
Детали
| Бренд | Sanyo Denki |
|---|
