Orion Fans

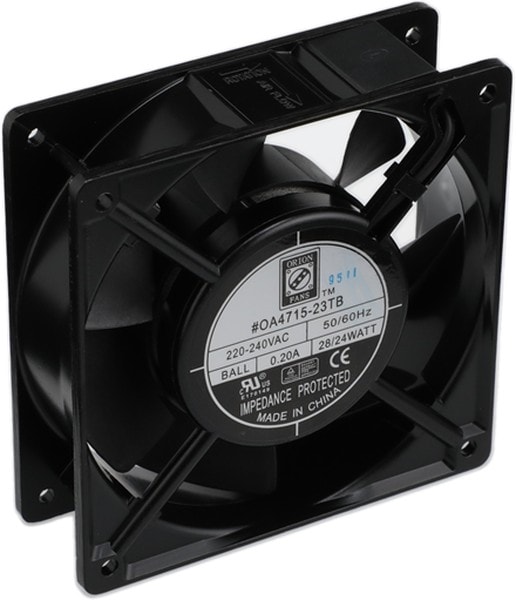

8006403269 OA4715-23TB, AC Fans Axial Fan, 120x120x38mm, 230VAC, 110CFM, 24W, 44.2dBA, 2980RPM, Ball, Terminals Hirschmann
4540,00 ₽
Описание
Fan Tubeaxial 230VAC Square — 120mm L x 120mm H Ball 110.0 CFM (3.08m³/min) 2 Terminals
| Вес, г | 544 |
| Air Flow | 110 CFM(3.08m³/min) |
| Fan Type | Tubeaxial |
| Mounting | Screw Mount |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 230 |
| Толщина,мм | 38 |
| ECCN | EAR99 |
| Noise | 44.0dB |
| Type | Magnetic |
| Approval Agency | cURus, TUV |
| Operating Temperature | 14 ~ 158°F(-10 ~ 70°C) |
| Termination | 2 Terminals |
| Width | 38.00mm |
| COO | CN |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 120.24 VAC |
| Единица измерения | шт |
| Static Pressure | 0.37 in H2O(92.2 Pa) |
| Bearing Type | Ball |
| Current Rating | 80 A |
| Шум, дБA | 44.2 |
| Power (Watts) | 24.00W |
| RPM | 3000 RPM |
| Voltage — Rated | 230VAC |
| Number of Poles | 3 |
| Terminal Design | Stud |
Детали
| Бренд | Orion Fans |
|---|
