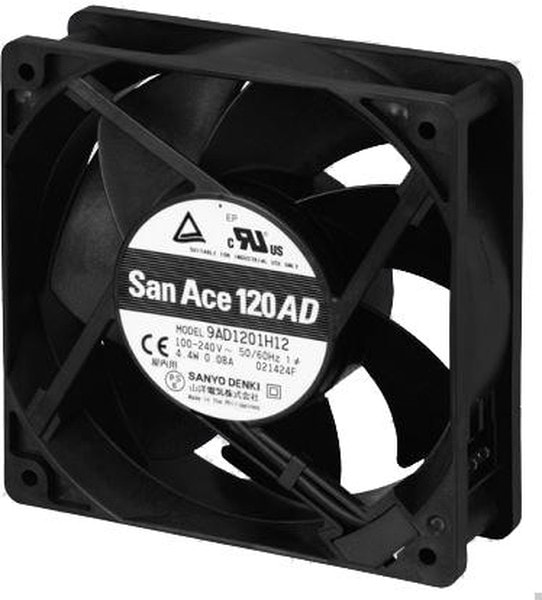

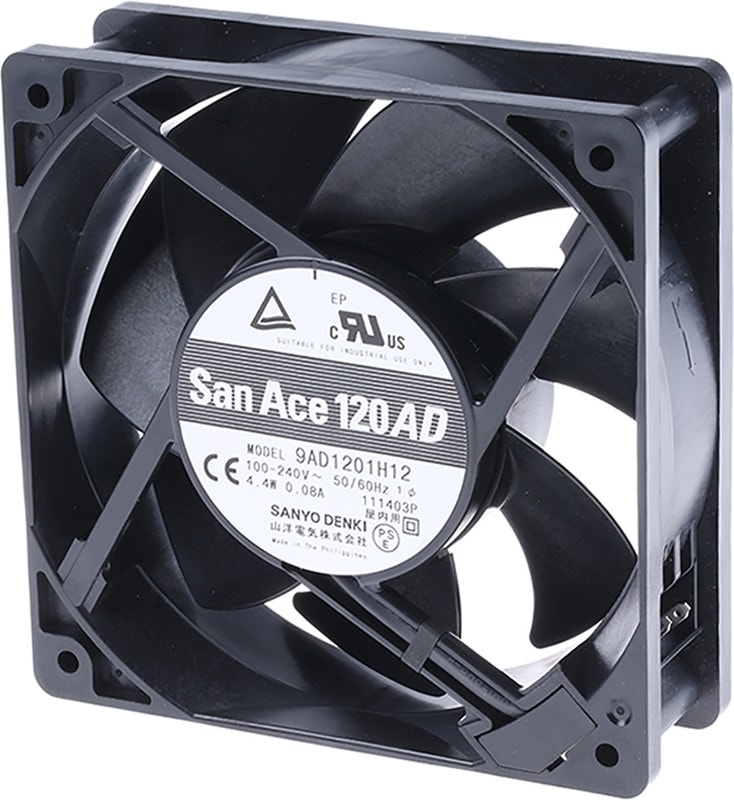

8006476025 9AD1201H12, EC Fans AC, DC Axial Fan, 120x120x38mm, 100-240VAC, 84Pa, Ribbed, Low Power, Long Life Hirschmann
10500,00 ₽
Sanyo Denki San Ace 92AD AC/DC Fans
Sanyo Denki San Ace 92AD AC/DC Fans deliver energy-savings, high airflow, and static pressure all in a 92 x 92 x 38mm footprint. San Ace 92AD operates by internally converting AC power into DC power, providing the superior performance of a DC fan with the flexibility of AC input. The San Ace 92AD is an exceptional cooling solution for general industrial machinery, factory automation, and PV inverters. Power consumption is reduced by approximately 44% compared with the San Ace 92. A rated voltage range of 100VAC to 240VAC allows for usage in both 100VAC and 200VAC systems. Rotation speed remains constant even at different input voltages. The maximum airflow of the San Ace 92AD type is approximately 1.5 times and the maximum static pressure is approximately 2.3 times higher than that of the San Ace 92. The San Ace 92AD type has an expected life of 60.000 hours (approximately 6 years), approximately 2.4 times that of the San Ace 92.
Learn More
| Вес, г | 289 |
| Потребляемая мощность, Вт | 4.4 |
| Air Flow | 180m³/h |
| Mounting | Flange Mount |
| Noise Level | 42dB |
| Series | 9AD Type |
| Supply Voltage | 100 → 240 V ac |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 120 |
| Толщина,мм | 38 |
| Brand | Sanyo Denki |
| Factory Pack Quantity | 21 |
| Manufacturer | Sanyo Denki |
| Product Category | AC Fan |
| Product Type | EC Fans |
| Subcategory | Fans, Blowers & Accessories |
| ECCN | EAR99 |
| HTSUS | 8414596590 |
| RoHS Status | RoHS Compliant |
| Airflow | 106 CFM(3 m3/min) |
| Current Type | EC |
| Factory Pack Quantity: Factory Pack Quantity | 21 |
| Noise | 42 dBA |
| Operating Supply Voltage | 120 VAC |
| Power Rating | 4.4 W |
| Termination Style | Wire Leads |
| Type | Axial |
| Width | 120mm |
| Housing Material | Plastic |
| Power consumption | 4.4W |
| speed | 3250 RPM |
| Bearing Type | Ball |
| Pressure Type | 0.34 in |
| Частота вращения,об./мин. | 3250 |
| Производительность,м.куб./мин. | 106 |
| Шум, дБA | 42 |
| Tradename | San Ace 120AD |
| AC or DC Operation | AC |
| Maximum Current | 80mA |
| Fan Speed | 3250rpm |
| Termination Type | Lead Wire |
| Automotive | Unknown |
| Part Status | Active |
| PPAP | Unknown |
| ECCN (US) | 4A994 |
| EU RoHS | Compliant with Exemption |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Pressure | 0.34inH2O |
| Minimum Operating Temperature (°C) | -20 |
| Shape | Square |
| Size (Metric) (mm) | 120 X 120 X 38 |
| Voltage Rating (V) | 100 to 240 |
| Power Rating (W) | 4.4 |
| Nominal Speed (r/min) | 3250 |
| Maximum Airflow (CFM) | 106 |
| Noise Level (dB) | 42 |
| Bearings | Ball |
| Line Current (A) | 0.08 |
| Operating Input Voltage Range (V) | 90 to 264 |
| Бренд | Sanyo Denki |
|---|
