Orion Fans

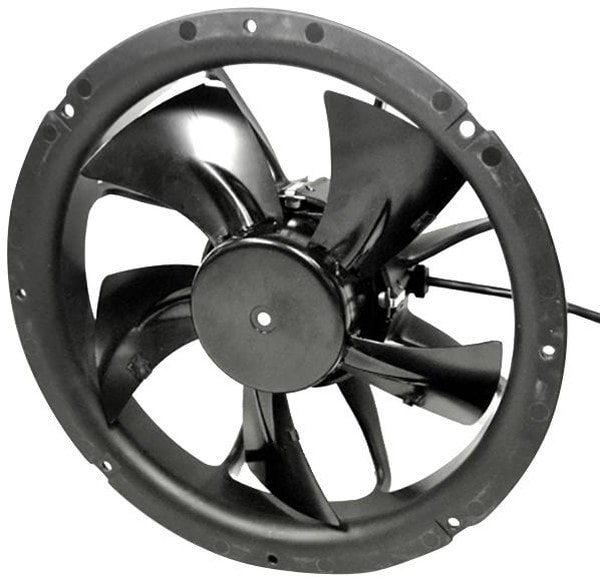

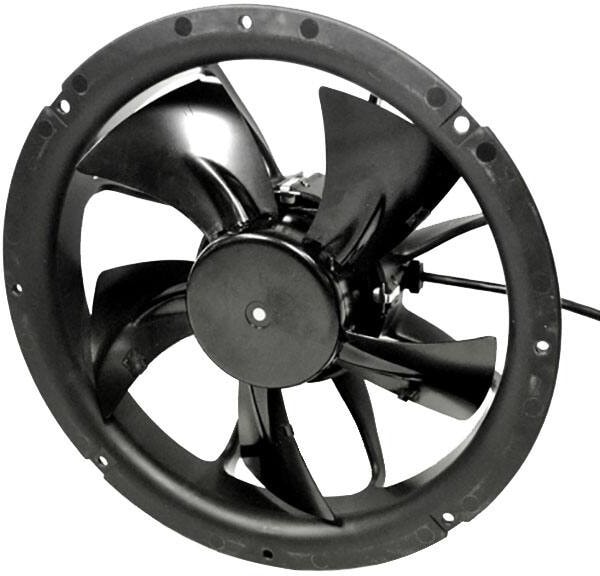

8006620371 OA200EC-11-1WB, Fan Tubeaxial 115VAC Round — 250mm Dia Ball 290.0 ~ 460.0 CFM (8.12 ~ 12.88m³/min) 3 Wire Leads Hirschmann
26800,00 ₽
Описание
Fan Tubeaxial 115VAC Round — 250mm Dia Ball 290.0 ~ 460.0 CFM (8.12 ~ 12.88mВі/min) 3 Wire Leads
| Потребляемая мощность, Вт | 8 |
| Fan Type | Tubeaxial |
| Series | OA200EC-> |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 115 |
| Толщина,мм | 76.1 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Dual Speed, Electronic Commutation(EC), Thermal O |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 40000 Hrs @ 40В°C |
| Material — Blade | Metal |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Operating Temperature | -13 ~ 122В°F(-25 ~ 50В°C) |
| Size / Dimension | Round-250mm Dia |
| Termination | 3 Wire Leads |
| Weight | 2.2 lbs(997.9 g) |
| Width | 76.10mm |
| Current Rating (Amps) | 0.130/0.400A |
| Ingress Protection | IP55-Dust Protected, Water Resistant |
| Static Pressure | 0.280/0.460 in H2O(69.7/114.6 Pa) |
| Ток,А | 400 |
| Частота вращения,об./мин. | 1400 |
| Производительность,м.куб./мин. | 290 |
| Шум, дБA | 44 |
| Линейка продукции | OA200EC Series |
| Video File | Harsh Environment Fans |
| Класс Мощности | 26Вт |
| Поток воздуха — куб.фут/мин | 460фут³/мин |
| Тип корпуса вентилятора | Circular |
| Тип Подключения Питания | 3 Lead Wires |
| Класс Защиты IP | IP55 |
Детали
| Бренд | Orion Fans |
|---|
