NMB Technologies

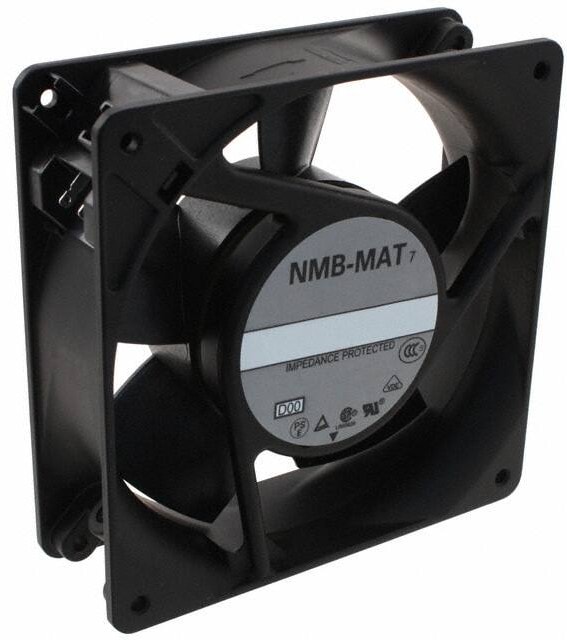

8006710064 4715FS-12T-B50-D00, Fan Tubeaxial 115VAC Square — 119mm L x 119mm H Ball 110.0 CFM (3.08m³/min) 2 Terminals Hirschmann
2750,00 ₽
Описание
Fan Tubeaxial 115VAC Square — 119mm L x 119mm H Ball 110.0 CFM (3.08mВі/min) 2 Terminals
| Вес, г | 508 |
| Потребляемая мощность, Вт | 14.4 |
| Fan Type | Tubeaxial |
| Series | FS-> |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 115 |
| Factory Pack Quantity | 20 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | RoHS Compliant |
| Airflow | 110 CFM(3.1 m3/min) |
| Current Type | AC |
| Noise | 45 dBA |
| Operating Supply Voltage | 115 V |
| Power Rating | 14.4 W |
| Termination Style | Quick Connect Terminal |
| Type | Axial |
| Approval Agency | CE, CSA, TUV, UL |
| Material — Blade | Plastic |
| Material — Frame | Aluminum |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-119mm L x 119mm H |
| Termination | 2 Terminals |
| Weight | 1.2 lbs(544.3 g) |
| Width | 38.00mm |
| speed | 3100 RPM |
| Current Rating (Amps) | 0.190A |
| Static Pressure | 0.37 in H2O(92.2 Pa) |
| Bearing Type | Ball |
| Частота вращения,об./мин. | 3100 |
| Производительность,м.куб./мин. | 110 |
| Шум, дБA | 45 |
| Tradename | NMB-MAT |
| Life | 100000 Hour |
| Selling Alternatives | 11938FB-A1N-EA-00 |
Детали
| Бренд | NMB Technologies |
|---|
