Orion Fans

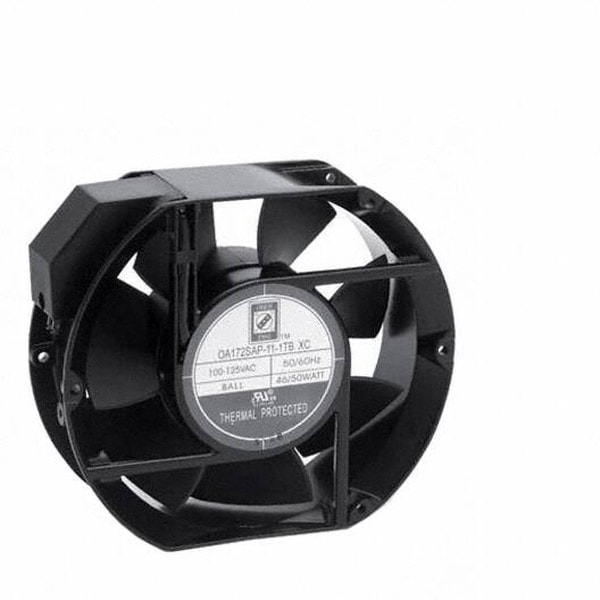

8007081245 OA172SAP-22-1TBXC, AC Fans Axial Fan, 150x172x51mm, 230VAC, 293CFM, 50W, 61dBA, 3300RPM, Ball, Terminals Hirschmann
9760,00 ₽
Описание
Fan Tubeaxial 230VAC Rectangular/Rounded — 172mm L x 150mm H Ball 300.0 CFM (8.40mВі/min) 2 Terminals
| Потребляемая мощность, Вт | 50 |
| Fan Type | Tubeaxial |
| Series | OA172SAP-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 150×172 |
| Рабочее напряжение,В | 230 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Power Rating | 50W |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 60000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Aluminum |
| Operating Temperature | -40 ~ 158В°F(-40 ~ 70В°C) |
| Size / Dimension | Rectangular/Rounded-172mm L x 150mm H |
| Termination | 2 Terminals |
| Width | 50.80mm |
| Static Pressure | 0.78 in H2O(194.3 Pa) |
| Bearing Type | Ball Bearing |
| Air Flow — CFM | 300CFM |
| External Depth | 51mm |
| Fan Frame Size | 172mm |
| Fan Frame Type | Rectangular with Rounded Ends |
| Noise Rating | 61dBA |
| Nominal Rated Voltage AC | 230V |
| Power Connection Type | Terminals |
| Product Range | OA172SAP-XC Series |
| Rated Speed | 3300rpm |
| Частота вращения,об./мин. | 3300 |
| Производительность,м.куб./мин. | 300 |
| Шум, дБA | 61 |
| Voltage Range | 200 ~ 240VAC |
Детали
| Бренд | Orion Fans |
|---|
