Orion Fans

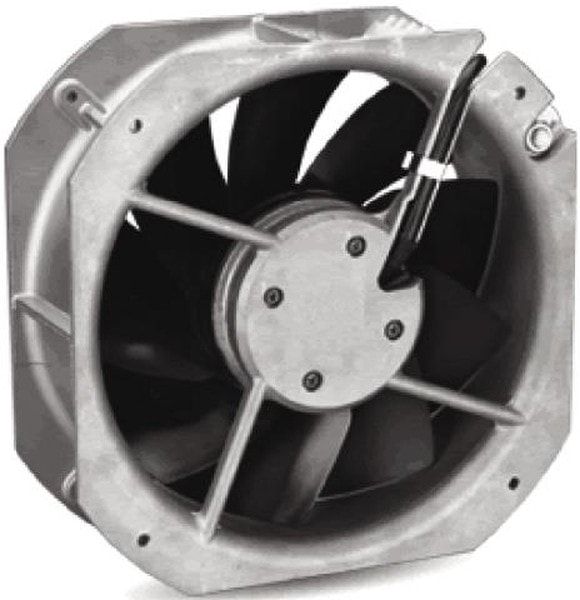

8007201235 OA225AN-22-1TB18, AC Fans Axial Fan, 225x225x80mm, 230VAC, 600CFM, 72W, 61dBA, Ball, Terminal, IP55 Hirschmann
30970,00 ₽
Описание
AC Fan Ball Bearing 230V 74W/80W 50Hz/60Hz 2550RPM/2800RPM 530CFM/600CFM 59dB/61dB Flange Mount
| Mounting | Flange Mount |
| Noise Level | 61 dB |
| Special Features | High Speed |
| Размеры рамы,мм | 225×225 |
| Рабочее напряжение,В | 230 |
| Толщина,мм | 80 |
| Product Category | AC Fan |
| ECCN | EAR99 |
| Power Rating | 80 W |
| Operating Temperature | -40 to 60 °C |
| Termination | Terminals |
| Category | AC Fan |
| COO | TW |
| Housing Material | Die-Cast Aluminum |
| Maximum Airflow | 600 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 230 V |
| Единица измерения | шт |
| Шум, дБA | 61 |
| Automotive | Unknown |
| Part Status | Active |
| PPAP | Unknown |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant |
| Maximum Operating Temperature (°C) | 80 |
| Maximum Pressure | 0.67inH2O|0.55inH2O |
| Minimum Operating Temperature (°C) | -40 |
| Protection | Thermal |
| Shape | Square |
| Size (mm) | 225 X 225 X 80 |
| Voltage Rating (V) | 230 |
| Power Rating (W) | 65|72 |
| Nominal Speed (r/min) | 2550|2800 |
| Maximum Airflow (CFM) | 530|600 |
| Noise Level (dB) | 59|61 |
| Bearings | Ball |
| Operating Input Voltage Range (V) | 200 to 255 |
Детали
| Бренд | Orion Fans |
|---|
