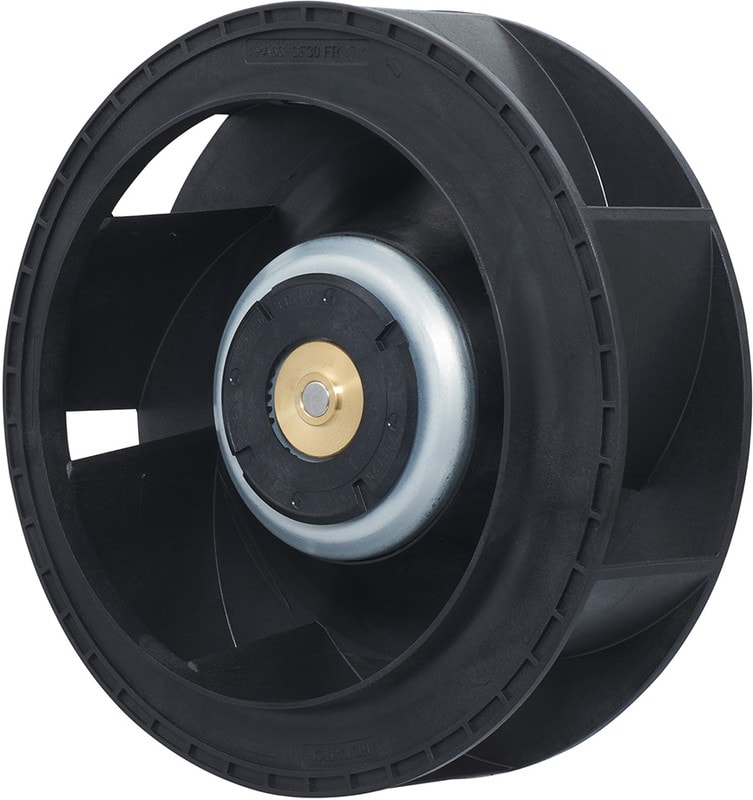

8007882006 9TG24P0G01, Blowers & Centrifugal Fans DC Centrifugal Fan, 175x69mm Round, 24VDC, Tachometer, PWM Hirschmann
27200,00 ₽
Описание
San Ace Fans with PWM Control Function
Sanyo Denki San Ace Fans with Pulse Width Modulation (PWM) Control Function enables designers to externally control the speed of fans. This beneficial design feature varies the duty cycles of PWM input signals between the control and grounding terminals. The PWM control allows fans to operate optimally in response to the device's heat level, lowering the noise and power consumption of systems. Sanyo Denki San Ace Fans with PWM Control Function offer precise control and the ability to control multiple fans.
| Вес, г | 0.01 |
| Air Flow | 494.7cfm |
| Noise Level | 73dB(A) |
| Series | San Ace C100 |
| Supply Voltage | 24 V dc |
| Brand | Sanyo Denki |
| Manufacturer | Sanyo Denki |
| Packaging | Bulk |
| Product Category | Blowers & Centrifugal Fans |
| Product Type | Centrifugal Fans |
| Subcategory | Fans, Blowers & Accessories |
| Features | Tachometer, PWM |
| Airflow | 494 CFM(14 m3/min) |
| Current Type | DC |
| Depth | 175 mm |
| Factory Pack Quantity: Factory Pack Quantity | 6 |
| Noise | 73 DBA |
| Operating Supply Voltage | 24 VDC |
| Power Rating | 93.6 W |
| Termination Style | Wire Leads |
| Type | Centrifugal |
| Width | 175mm |
| Housing Material | Aluminum |
| speed | 4700 RPM |
| Static Pressure | 885Pa |
| Part # Aliases | 3568879 20T0223 |
| Pressure Type | 3.55 in H2O |
| Blower Type | Centrifugal |
| Tradename | San Ace C175 |
| AC or DC Operation | DC |
| Maximum Current | 3.9A |
| Fan Speed | 4700rpm |
| Direction of Curve | Forward |
| Mounting hole diameter | 4mm |
| Horizontal Hole Spacing | 58mm |
| Mounting Hole Spacing | 58mm |
| Sensor Type | PWM |
| Vertical Hole Spacing | 58mm |
| Termination Type | Lead Wire |
| Inlet Diameter | 131mm |
| Outlet Diameter | 0 |
Детали
| Бренд | Sanyo Denki |
|---|
