EBM-PAPST

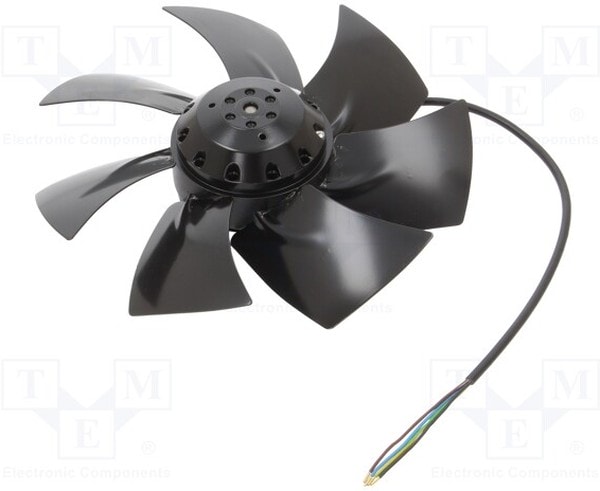

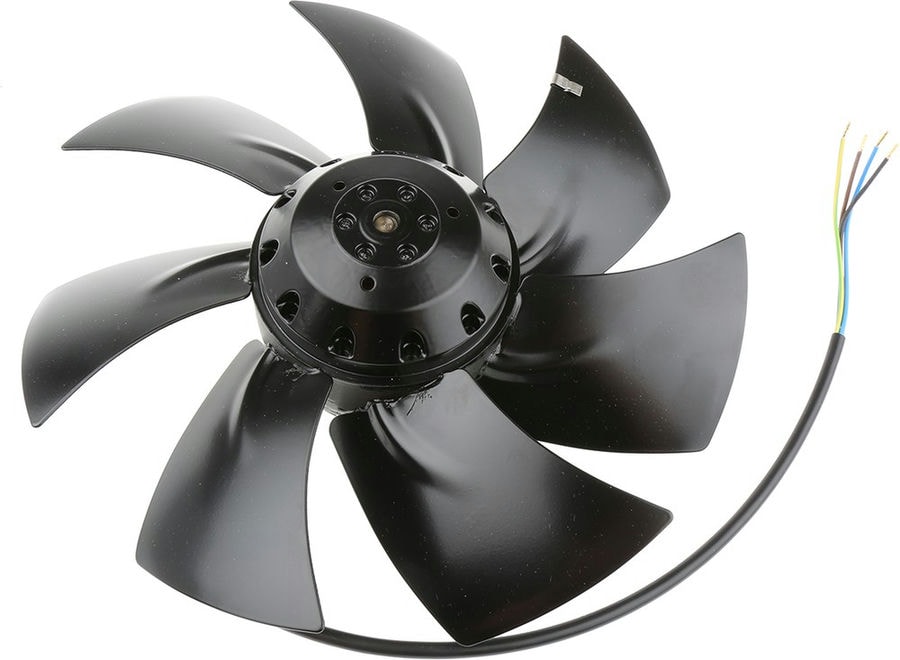

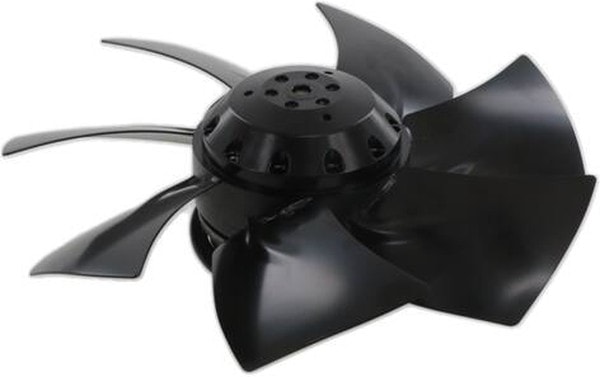

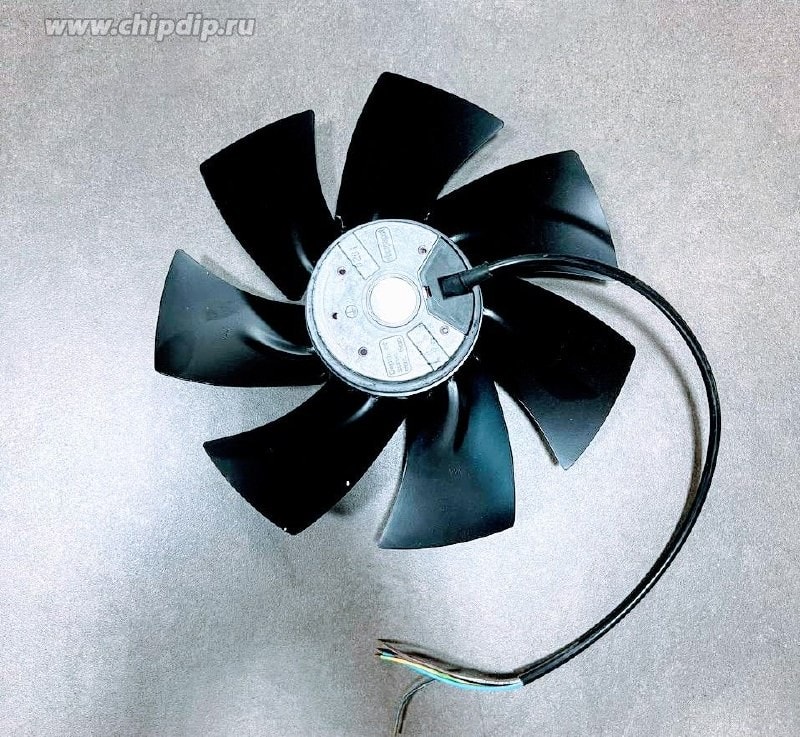

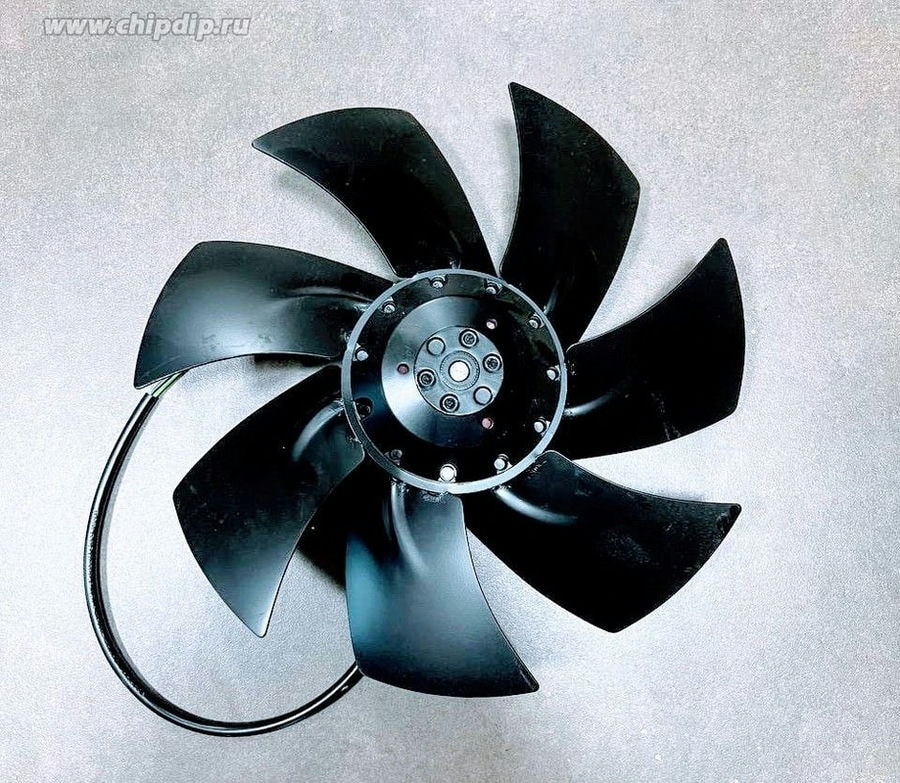

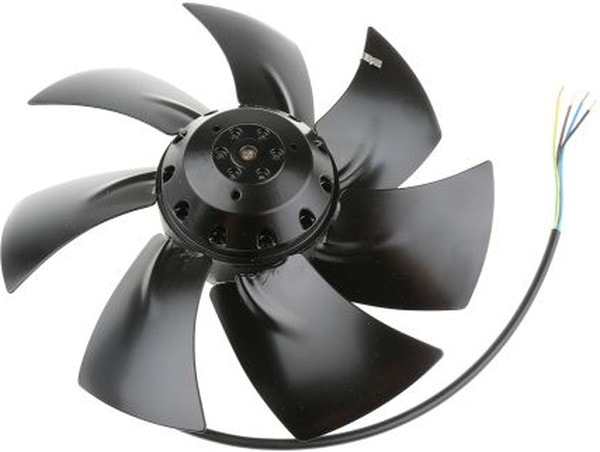

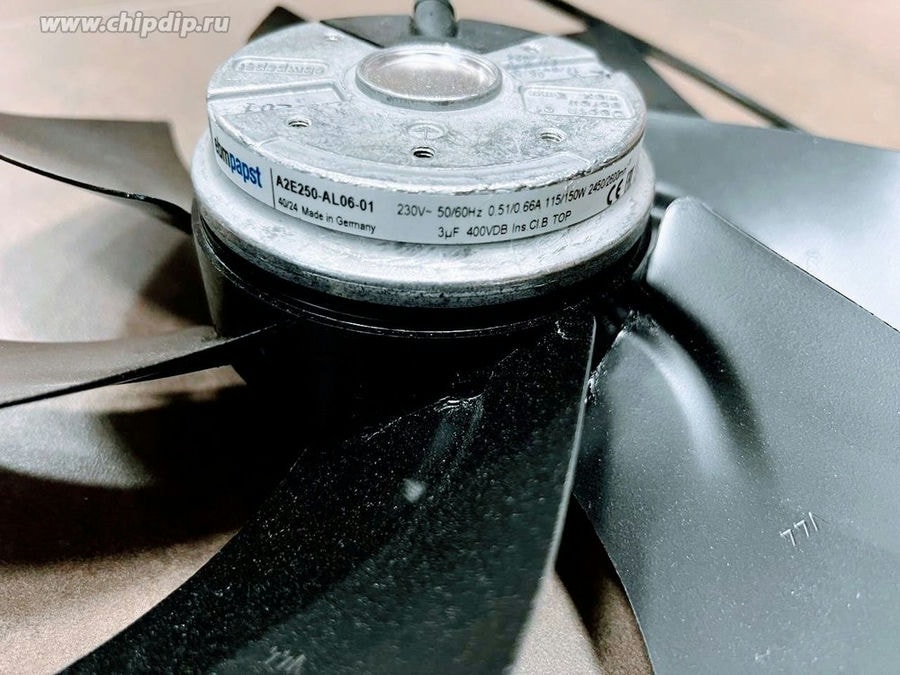

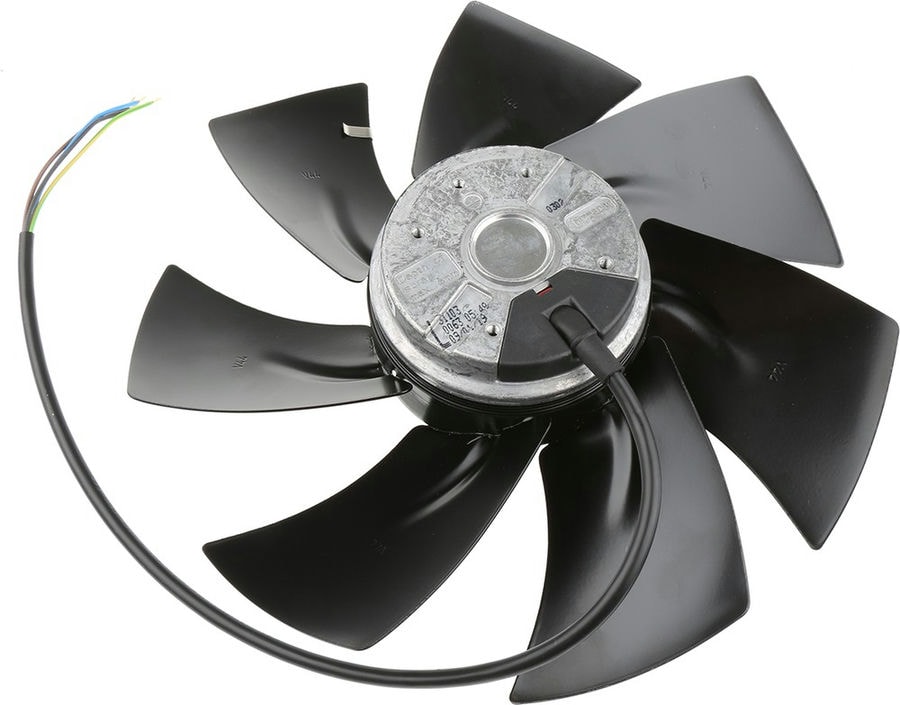

8015739726 Вентилятор Ebmpapst A2E250-AL06-01 230V 50/60Hz 0.51/0.66A 115/150W 2450/2900min осевой Hirschmann
36860,00 ₽
Описание
Fan Tubeaxial 230VAC Round — 251mm Dia Ball 1072.0 CFM (30.02mВі/min) 4 Wire Leads
| Вес, кг | 2.56 |
| Fan Type | Tubeaxial |
| Noise Level | 71 dB |
| Series | A2E250-> |
| Special Features | None |
| Рабочее напряжение,В | 230 |
| Manufacturer | EBM-PAPST |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Bulk |
| Features | Capacitor, Thermal Overload Protector(TOP) |
| IP Rating | IP44 |
| Power Rating | 150 W |
| Approval Agency | CCC, CE, EAC |
| Material — Blade | Steel |
| Operating Temperature | -13 ~ 122В°F(-25 ~ 50В°C) |
| Size / Dimension | Round-251mm Dia |

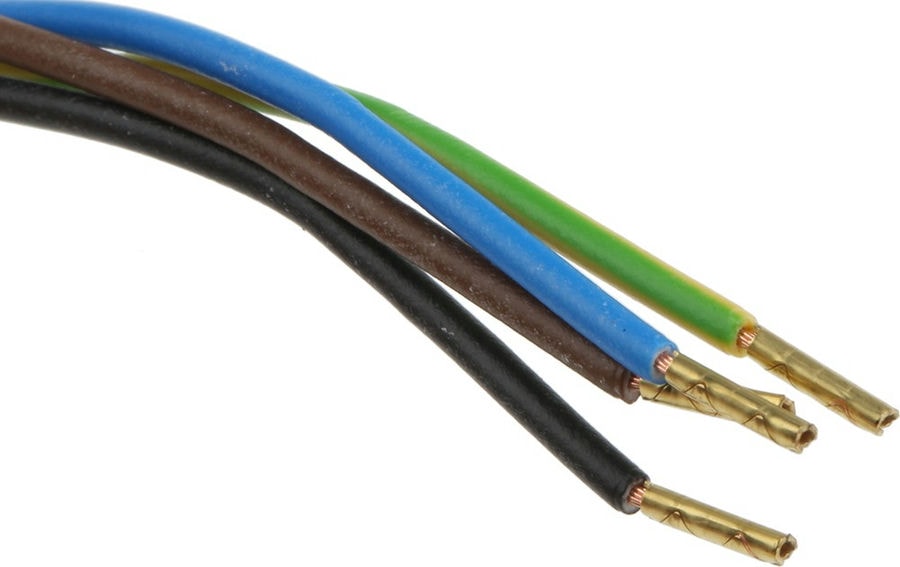

| Termination | 4 Wire Leads |
| Width | 75.50mm |
| Impeller material | metal |
| Kind of fan | axial |
| Leads | lead x4 |
| Type of fan | AC |
| Category | AC Fan |
| COO | DE |
| Housing Material | Sheet Steel |
| Maximum Airflow | 1160CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 230 V |
| Единица измерения | шт |
| Current Rating (Amps) | 0.660A |
| Ingress Protection | IP44 |
| Static Pressure | 0.341 in H2O(85.0 Pa) |
| Current Rating | 0.51A |
| AC or DC Operation | AC |
| Fan dimensions | Ø250x72mm |
| Direction of Curve | Backward |
| Frequency | 50Hz |
| Cable length | 0.45m |
| Kind of motor | 1-phase |
| Protection class | I |
| Fan motor | M2E068-CF |
| Insulation class | B |
Детали
| Бренд | EBM-PAPST |
|---|
