Sanyo Denki

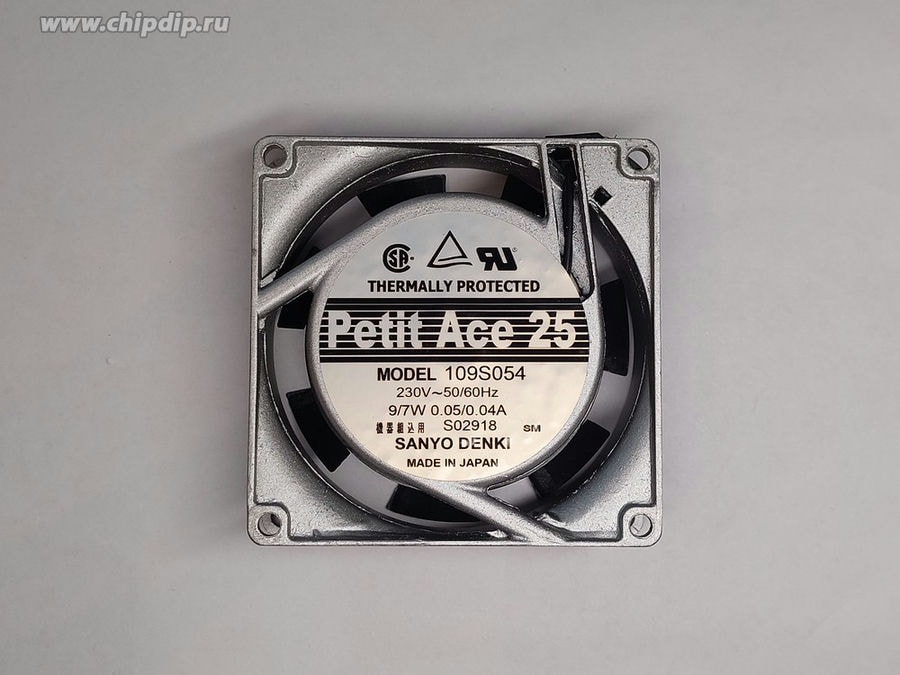

8017873455 Вентилятор Sanyo Denki Petit Ace 25 109S054 230V 50/60Hz 9/7W 0.05/0.04A 80X25 Клемма () Hirschmann
10310,00 ₽
Описание
Описание Вентилятор: AC; осевой; 80x80x25мм; 37,8куб.м/ч; 30дБА; шариковый
| Вес, г | 300 |
| Потребляемая мощность, Вт | 7 |
| Fan Type | Tubeaxial |
| Series | San Ace 80-> |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 230 |
| Толщина,мм | 25 |
| Manufacturer | SANYO DENKI |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Approval Agency | CE, CSA, PSE, TUV, UL |
| Lifetime @ Temp. | 25000 Hrs @ 60В°C |
| Material — Blade | Plastic |
| Material — Frame | Aluminum |
| Operating Temperature | -22 ~ 140В°F(-30 ~ 60В°C) |
| Size / Dimension | Square-80mm L x 80mm H |
| Termination | 2 Terminals |
| Weight | 0.595 lb(269.89 g) |
| Width | 25.00mm |
| Enclosure material | aluminium |
| Fan efficiency | 37.8m3/h |
| Impeller material | plastic |
| Kind of fan | axial |
| Type of fan | AC |
| Current Rating (Amps) | 0.040A |
| Static Pressure | 0.154 in H2O(38.4 Pa) |
| Current Rating | 50mA |
| Частота вращения,об./мин. | 3100 |
| Производительность,м.куб./мин. | 26.9 |
| Шум, дБA | 33 |
| Fan dimensions | 80x80x25mm |
| Video File | Summary of SanAce Cooling SystemsSanAce Server Coo |
| Current and power consumption tolerance | ±10% |
| Kind of material | flame retardant |
Детали
| Бренд | Sanyo Denki |
|---|
