Orion Fans

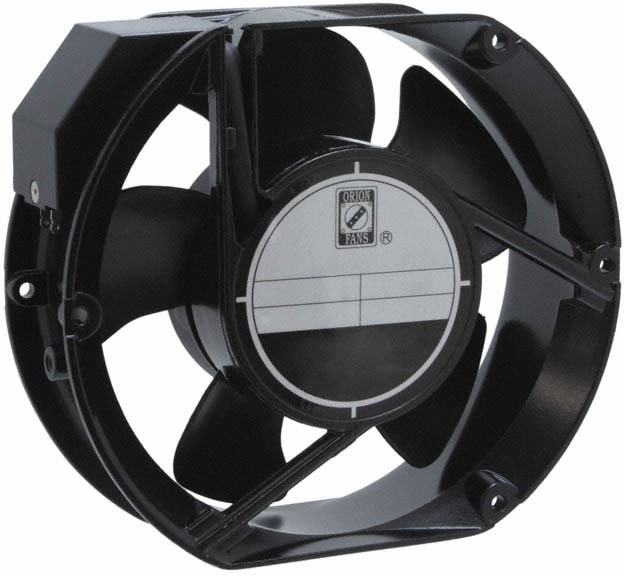

8024744056 OA172SAP-22-1TBIP55, AC Fans Axial Fan, 150x172x51mm, 230VAC, 226CFM, 31W, 58dBA, Ball, Terminal, IP55 Hirschmann
9020,00 ₽
Описание
Fan Tubeaxial 230VAC Rectangular/Rounded — 172mm L x 150mm H Ball 226.0 CFM (6.33m³/min) 2 Terminals
| Air Flow | 226 CFM(6.33m³/min) |
| Fan Type | Tubeaxial |
| Размеры рамы,мм | 150×172 |
| Рабочее напряжение,В | 230 |
| Features | Capacitor, Thermal Overload Protector(TOP) |
| Noise | 58.0dB |
| Approval Agency | cURus, TUV |
| Operating Temperature | -4 ~ 158°F(-20 ~ 70°C) |
| Termination | 2 Terminals |
| Width | 51.00mm |
| Ingress Protection | IP55-Dust Protected, Water Resistant |
| Static Pressure | 0.79 in H2O(196.8 Pa) |
| Bearing Type | Ball |
| Power (Watts) | 29.00W |
| RPM | 3400 RPM |
| Voltage — Rated | 230VAC |
Детали
| Бренд | Orion Fans |
|---|
