EBM-PAPST
8026547045 AC axial fan, 230 V, 150 x 150 x 55 mm, 325 m³/h, 49 dB, ball bearing, ebm-papst 7856 ES Hirschmann
18300,00 ₽
Описание

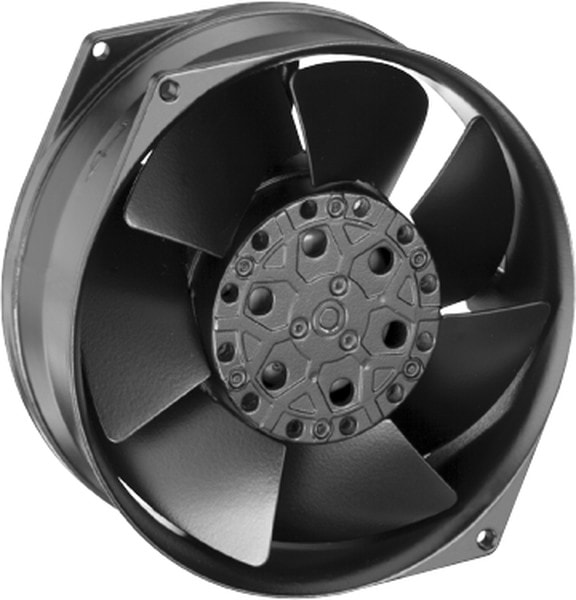

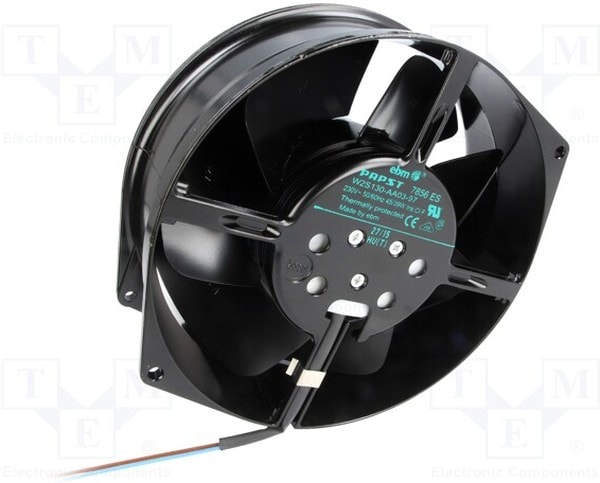

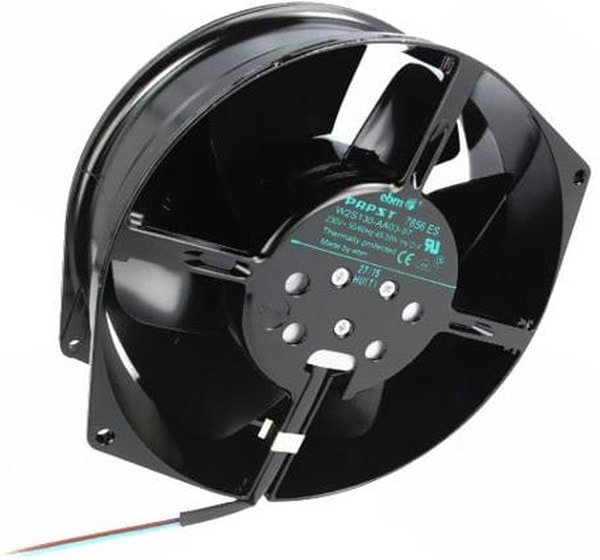

AC Axial fan, 7856 ES, EBM-PAPST
The 7856 ES axial AC fan is a type of fan that blow air along the axis of the fan-that is, the fancurved blades force air to move in parallel with the shaft on which the blades rotate. This fan can produce variable airflow and create higher flow rates than centrifugal fan.
Features
- Cable connection is with 2 strands which ends with claws
- Protected against overload by thermal switch
- Direction of rotation left, viewed on the rotor
- Material housing: metal
| Вес, кг | 1.1 |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 230 |
| Manufacturer | EBM-PAPST |
| Operating Temperature | -30…70°C |
| Enclosure material | metal |
| Fan efficiency | 325m3/h |
| Impeller material | metal |
| Kind of fan | axial |
| Leads | lead x2 |
| Type of fan | AC |
| Power consumption | 45 W |
| Rated voltage | 230 V |
| Sound pressure level | 49 db |
| speed | 2800 1/min |
| Type of bearing | ball bearing |
| Version | AC axial fan |
| Volume flow | 325 m³/h |
| Частота вращения,об./мин. | 2800 |
| Шум, дБA | 48 |
| Fan dimensions | Ø150x55mm |
| Colour | black |
| Frequency | 50Hz |
| Mounting hole diameter | Ø146mm |
| Cable length | 0.33m |
| Kind of motor | 1-phase |
Детали
| Бренд | EBM-PAPST |
|---|
