EBM-PAPST
8030890539 Вентилятор Ebmpapst AC 4300 H 9204305001 VUCE119XSJMS 115/230V AC 50/60Hz 11W 119X64 2pin Hirschmann
14650,00 ₽
Описание

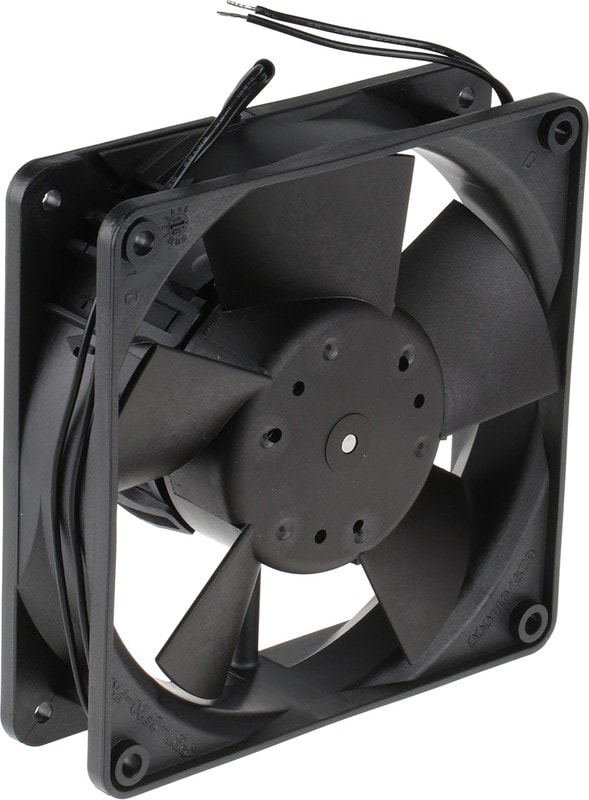

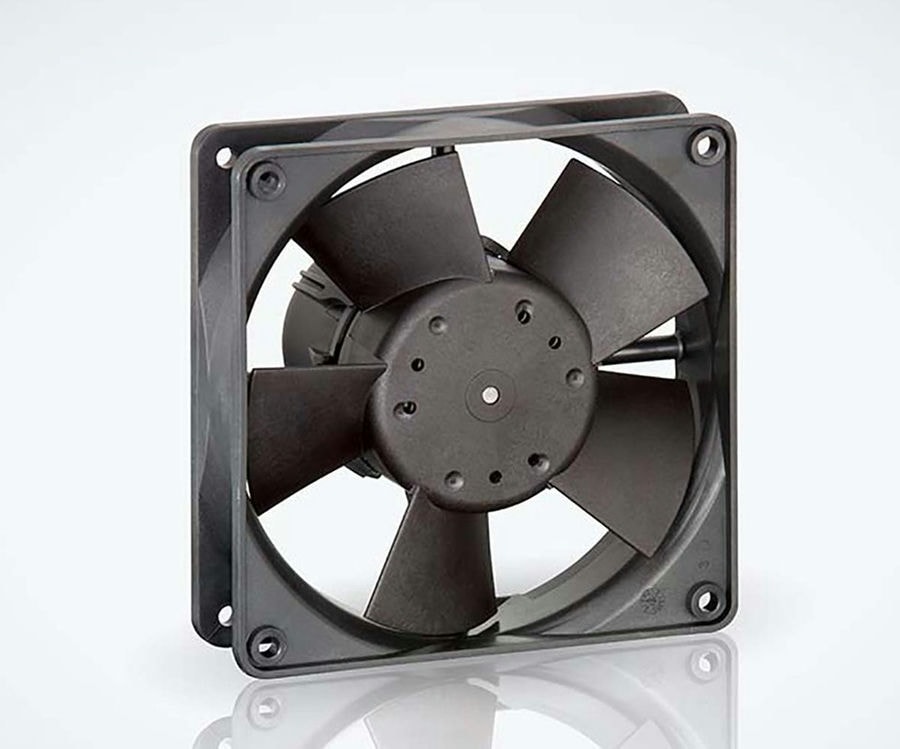

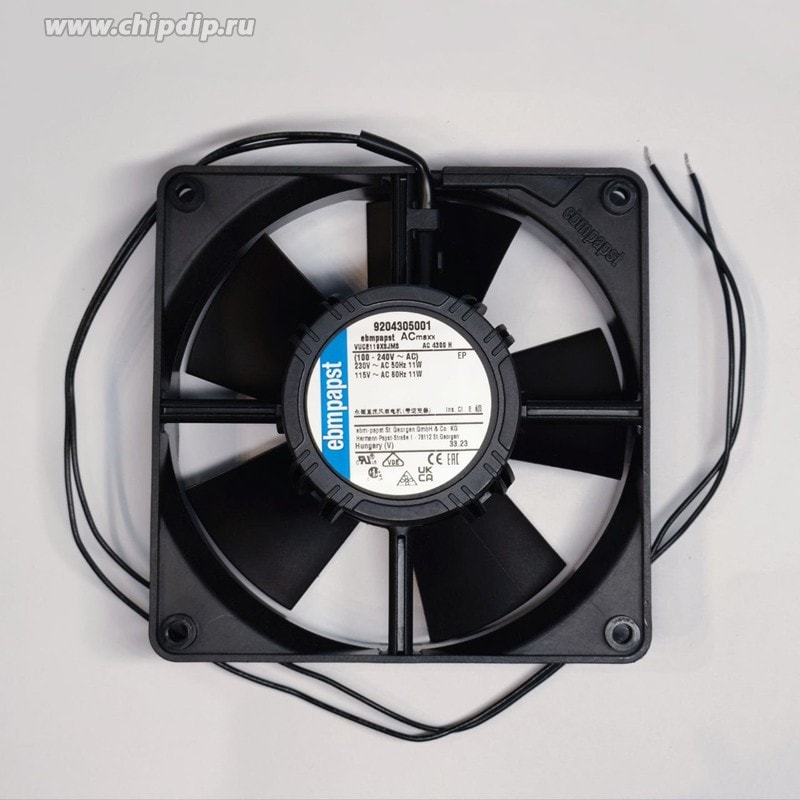

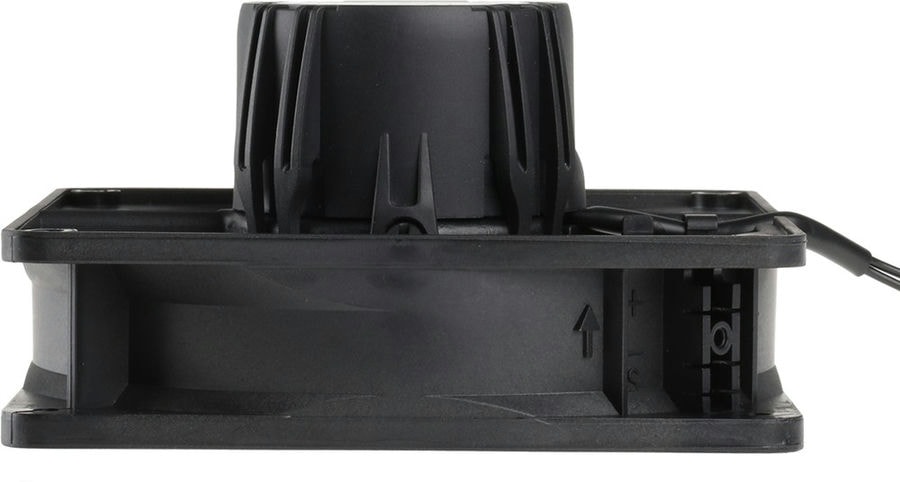

Fan Tubeaxial 115VAC Square — 119mm L x 119mm H Ball 120.0 CFM (3.36mВі/min) 2 Wire Leads
| Вес, г | 480 |
| Air Flow | 120.0 CFM (3.36mВі/min) |
| Fan Type | Tubeaxial |
| Noise Level | 51dB |
| Series | AC4300 |
| Supply Voltage | 85 → 265 V ac |
| Рабочее напряжение,В | 230 |
| Толщина,мм | 32 |
| Brand | ebm-papst |
| Manufacturer | ebm-papst |
| Product Category | EC Fans |
| Product Type | EC Fans |
| Subcategory | Fans, Blowers & Accessories |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Features | Electronic Commutation (EC), Locked Rotor Protecti |
| Airflow | 120 CFM(3.4 m3/min) |
| Current Type | EC |
| Depth | 32 mm |
| Factory Pack Quantity: Factory Pack Quantity | 1 |
| IP Rating | IP20 |
| Noise | 51 DBA |
| Operating Supply Voltage | 230 VAC |
| Power Rating | 11 W |
| Termination Style | Wire Leads |
| Type | Tubeaxial |
| Approval Agency | CSA, UL, VDE |
| Lifetime @ Temp. | 45000 Hrs @ 40В°C |
| Material — Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material — Frame | Polybutylene Terephthalate (PBT) |
| Operating Temperature | -4 ~ 158В°F (-20 ~ 70В°C) |
| Size / Dimension | Square — 119mm L x 119mm H |
| Termination | 2 Wire Leads |
| Weight | 0.716 lb (324.77 g) |
| Width | 32.00mm |
| Power consumption | 11W |
| speed | 3400 RPM |
| Ingress Protection | IP21 |
| Bearing Type | Ball |
| Power (Watts) | 11.00W |
| RPM | 3400 RPM |
| Voltage — Rated | 115VAC |
| Tradename | ACmaxx |
| AC or DC Operation | AC |
| Fan Speed | 3400rpm |
| Termination Type | Lead Wire |
| Video File | Wiring an EC Motor — Three phase motor wiring inst |
| Voltage Range | 85 ~ 265VAC |
Детали
| Бренд | EBM-PAPST |
|---|
