NMB Technologies

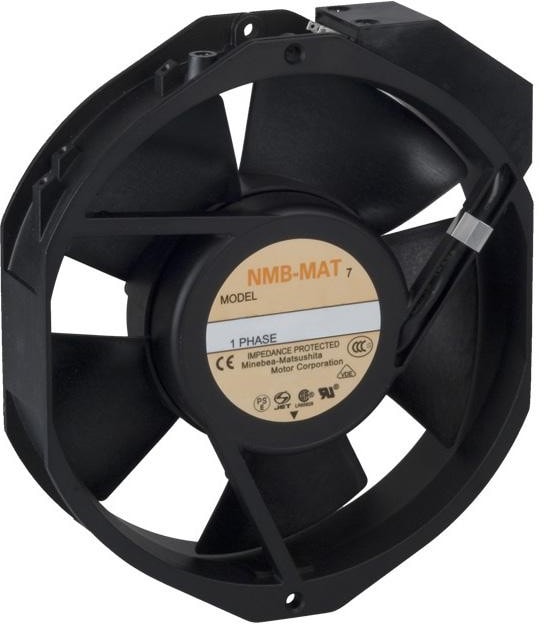

8033982615 15038PB-B3L-EP-00, Fan Tubeaxial 230VAC Rectangular/Rounded — 172mm L x 150mm H Ball 212.0 CFM (5.94m³/min) 3 Terminals Hirschmann
11000,00 ₽
Описание
15038PB AC Axial Fans
NMB Technologies 15038PB AC Axial Fans offer a 100V AC to 240V AC supply voltage range, up to 42W input power rating, and 3150RPM maximum speed. These fans feature steel impellers, aluminum casing, and ball bearing design. The 15038PB series has a minimum 100MΩ insulation resistance, 100.000 hours of life expectancy, and a 48dB to 53dB noise range. NMB Technologies 15038PB AC Axial Fans operate in a temperature range of -10°C to +60°C.
| Series | 15038PB |
| Рабочее напряжение,В | 230 |
| Brand | NMB Technologies |
| Manufacturer | NMB Technologies |
| Product Category | AC Fans |
| Product Type | AC Fans |
| Subcategory | Fans, Blowers & Accessories |
| Current Type | AC |
| Factory Pack Quantity: Factory Pack Quantity | 15 |
| Termination Style | Wire Leads |
| Type | Axial |
| COO | CN |
| Housing Material | Aluminum |
| RoHS | Yes |
| Supplier Standard Pack | 30 |
| Единица измерения | шт |
| Part # Aliases | 5915PC-23T-B30-A00 15038PB-B3L-EP-00-NMBT |
| Pressure Type | 0.865 in H2O |
| Tradename | NMB-MAT |
Детали
| Бренд | NMB Technologies |
|---|
