EBM-PAPST

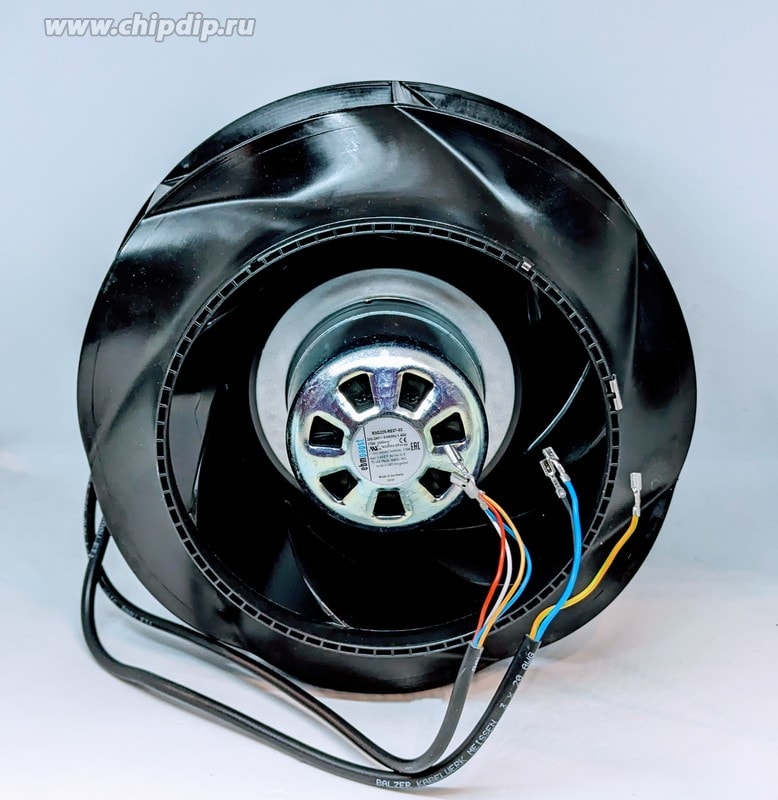

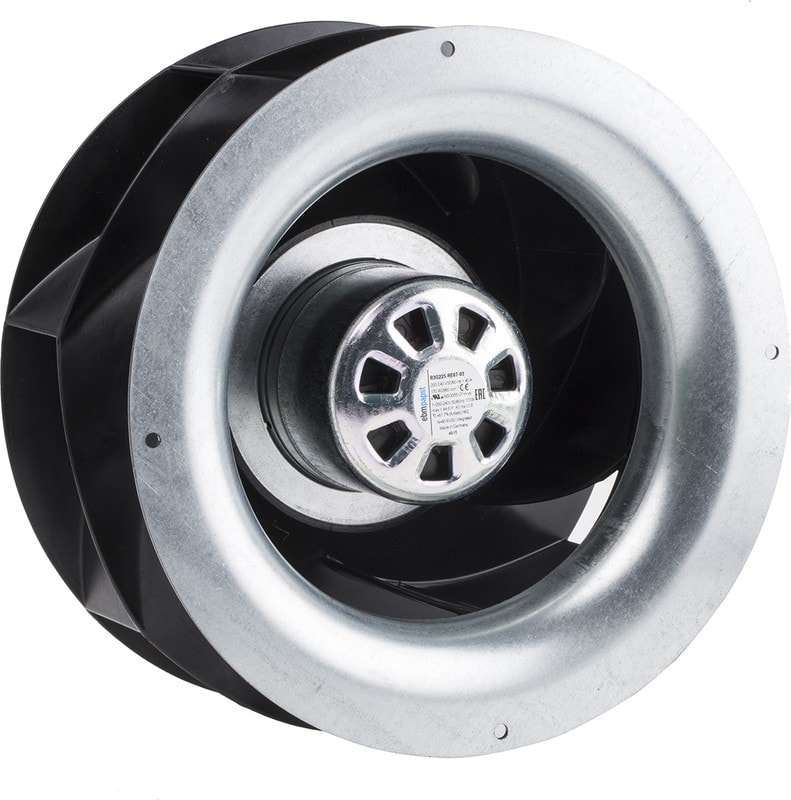

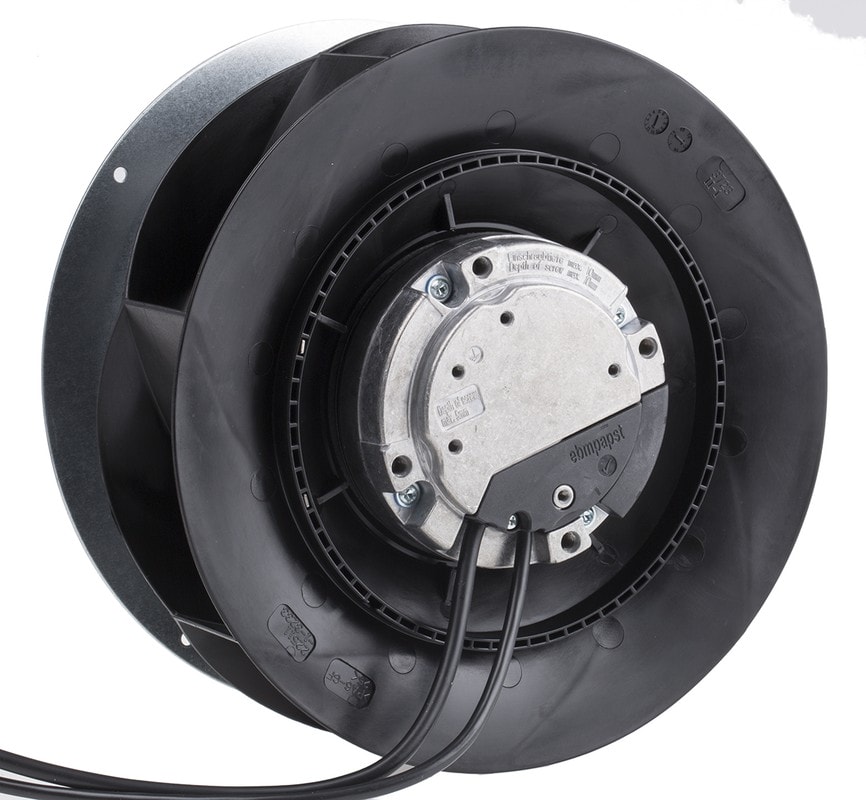

8035597450 Вентилятор Ebmpapst R3G225-RE07-03 200-240v 50/60Hz 1.4A 170w 2860min () Hirschmann
43200,00 ₽
Описание
The ebm-papst RadiCal backward curved EC fan offers higher performance for less power. • Low-pressure centrifugal solutions
| Вес, кг | 1.75 |
| Air Flow | 1300m³/h |
| Fan Type | Motorized Impellers |
| Noise Level | N/A |
| Series | RadiCal |
| Special Features | N/A |
| Supply Voltage | 230 V ac |
| Рабочее напряжение,В | 240 |
| ECCN | EAR99 |
| Features | Electronic Commutation(EC) |
| IP Rating | IP54 |
| Noise | 70.0dB(A) |
| Power Rating | 170 W |
| Approval Agency | UL |
| Operating Temperature | -13 ~ 140°F(-25 ~ 60°C) |
| Termination | 2 Wire Leads |
| Width | 220(Dia.)mm |
| Category | AC Motorized Impeller |
| COO | DE |
| Housing Material | Plastic |
| Maximum Airflow | 765CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 230 V |
| Единица измерения | шт |
| Ingress Protection | IP54-Dust Protected, Water Resistant |
| Bearing Type | Ball |
| Blower Type | Centrifugal |
| Power (Watts) | 170W |
| RPM | 2860 RPM |
| Voltage — Rated | 230VAC |
| AC or DC Operation | AC |
| Fan Speed | 2860rpm |
| Direction of Curve | Backward |
| Commutation Type | Electronic |
Детали
| Бренд | EBM-PAPST |
|---|
