EBM-PAPST

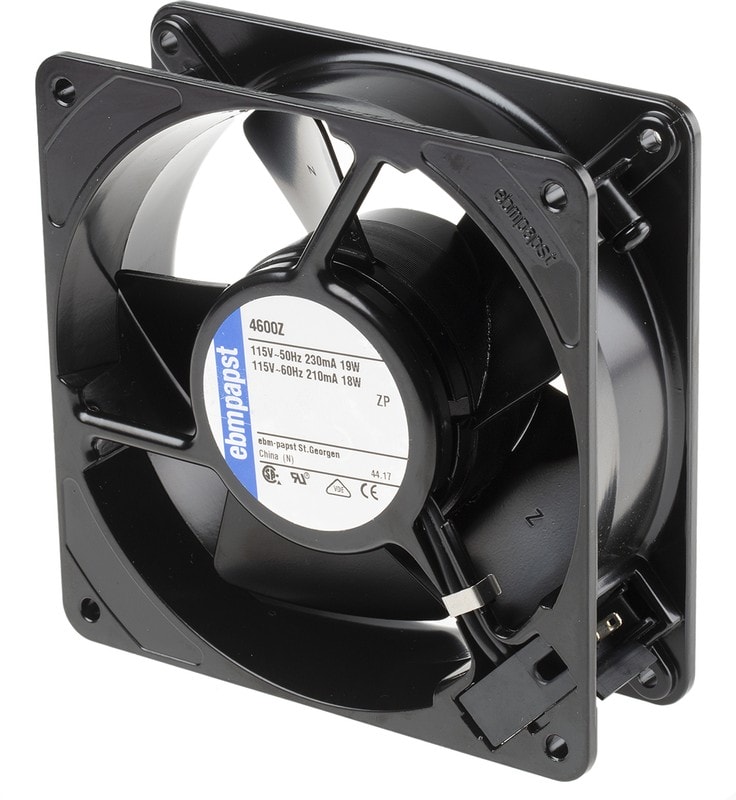

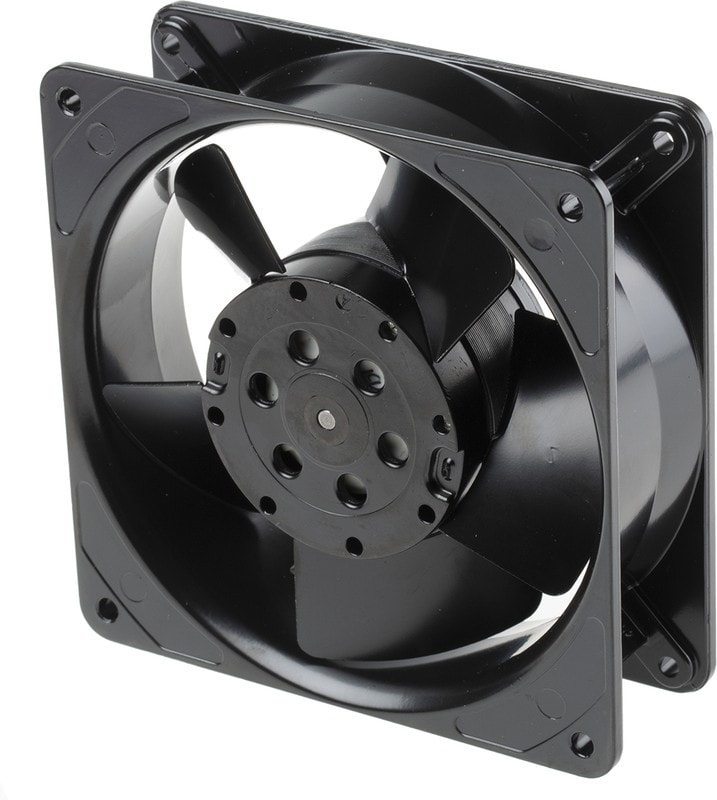

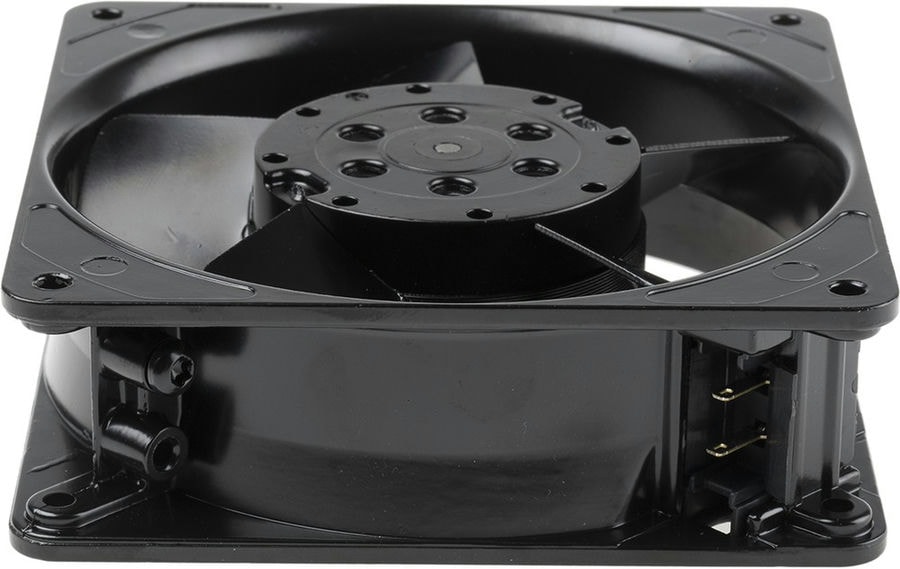

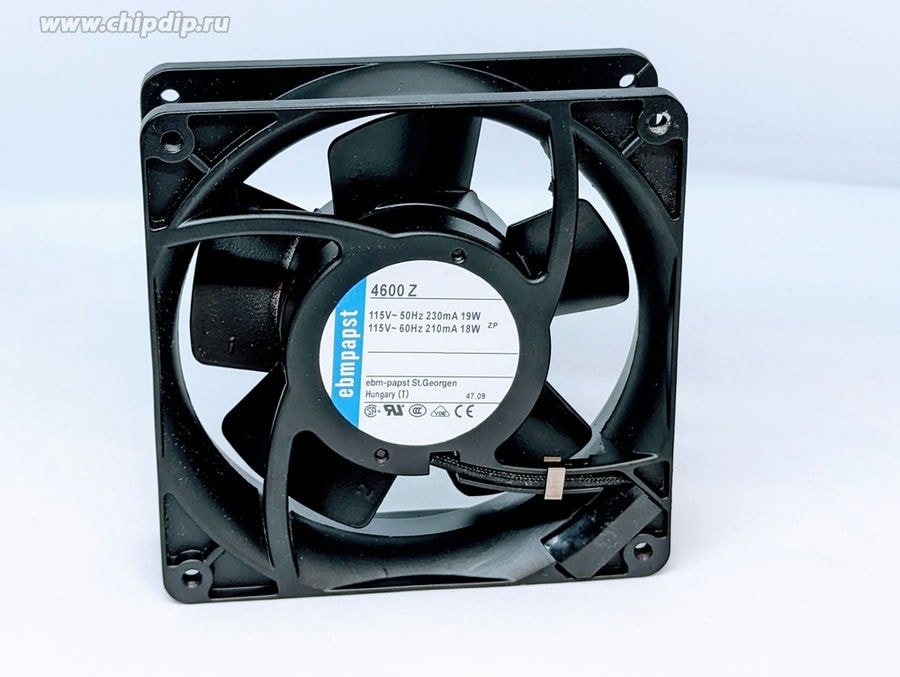

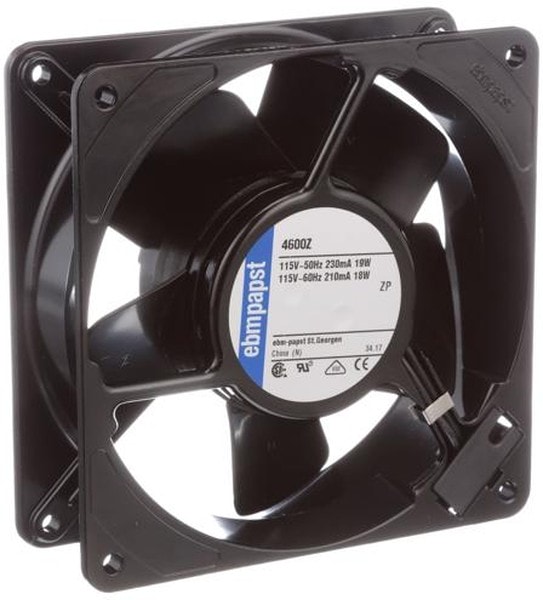

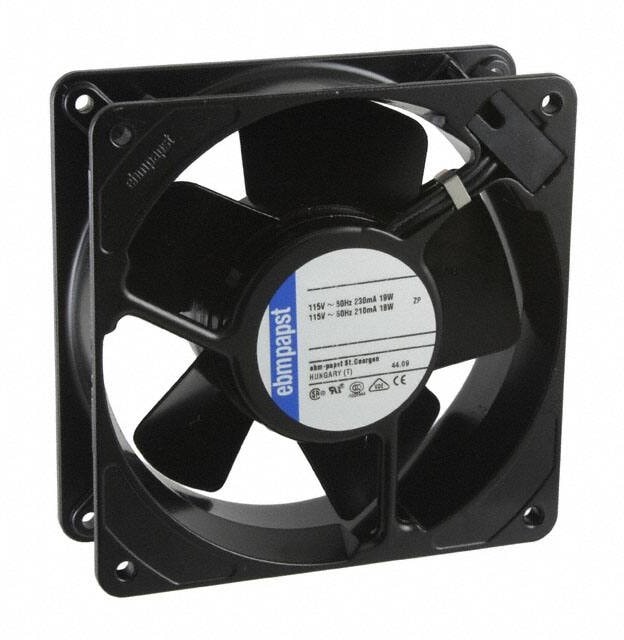

8035598081 Вентилятор Ebmpapst 4600Z 115V 50Hz 230mA 19W 119×38 клемма () Hirschmann
7770,00 ₽
Описание
AC axial fans are used when DC voltage is not available and are designed to create airflow with a high flow rate and medium pressure.
| Вес, г | 540 |
| Потребляемая мощность, Вт | 18 |
| Fan Type | Tubeaxial |
| Mounting | Flange Mount |
| Series | 4000Z-> |
| Тип подшипника | Sintec-Sleeve |
| Рабочее напряжение,В | 115 |
| Толщина,мм | 38 |
| Product Category | AC Fan |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Axial |
| Approval Agency | CE, CSA, UL, VDE |
| Lifetime @ Temp. | 40000 Hrs @ 40В°C |
| Material — Blade | Metal |
| Material — Frame | Metal |
| Operating Temperature | 14 ~ 140В°F(-10 ~ 60В°C) |
| Size / Dimension | Square-119mm L x 119mm H |
| Termination | 2 Terminals |
| Weight | 1.2 lbs(544.3 g) |
| Width | 38.00mm |
| Power consumption | 18 W |
| Rated voltage | 115 V |
| Sound pressure level | 45 db |
| speed | 3100 1/min |
| Type of bearing | sintec slide bearing |
| Version | AC axial fan |
| Volume flow | 180 m³/h |
| Частота вращения,об./мин. | 3100 |
| Производительность,м.куб./мин. | 105.9 |
| Шум, дБA | 45 |
| AC or DC Operation | AC |
| Direction of Curve | Forward |
| Sensor Type | Voltage Output |
| HTS | 8414.59.15.00 |
| Part Status | Active |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant |
| Maximum Operating Temperature (°C) | 60 |
| Minimum Operating Temperature (°C) | -10 |
| Protection | Impedance |
| Shape | Square |
| Size (mm) | 119 X 119 X 38 |
| Product Height (mm) | 38 |
| Product Length (mm) | 119 |
Детали
| Бренд | EBM-PAPST |
|---|
