Sunon
8044871101 UB3H3-700, Mighty Mini Series Blower, dc Operation, 17x17x3mm Hirschmann
6740,00 ₽
Описание

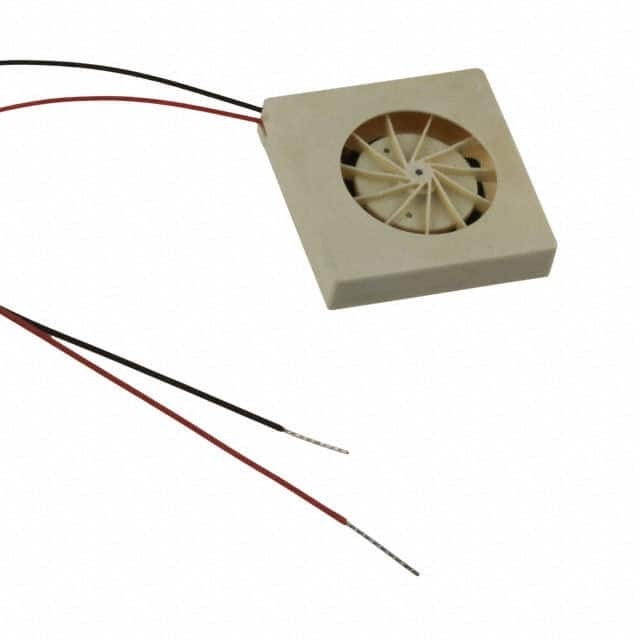

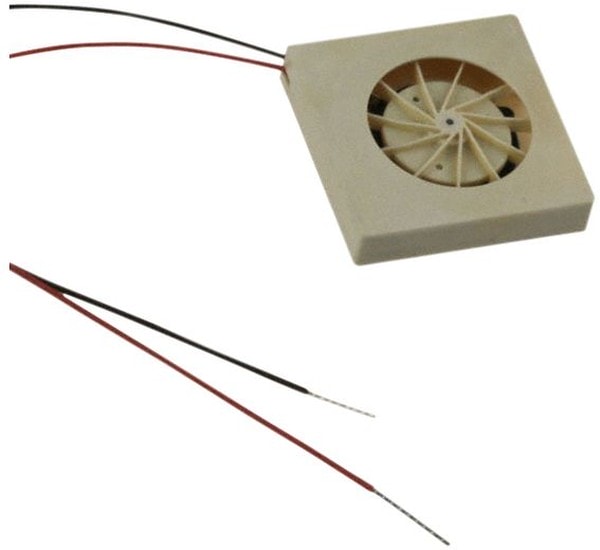

The MagLev Motor Blower manufactured. This compact motor blower has dimensions of 17X17X3 mm, making it suitable for various applications. With its single phase, 6-poles Brushless DC motor design, it provides efficient and reliable performance. The motor has an insulation resistance of more than 20M ohm and a dielectric strength of AC 500V. It operates at a rated voltage of 3 VDC and has a rated speed of 12500 RPM. The UB3H3-700 delivers an air delivery of 6.5 l/min and a static pressure of 40.34 Pa.
| Series | Mighty Mini |
| ECCN | EAR99 |
| Width | 17 mm |
| COO | CN |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Единица измерения | шт |
| Blower Type | Blower |
| AC or DC Operation | dc |
| Commutation Type | Auto Restart |
| Termination Type | Stranded Wire, 2-Pin |
| Current Max. | 37 mA |
| Height | 17 mm |
| Operating Voltage Max. | 3.5 V |
| Operating Voltage Min. | 2 V |
Детали
| Бренд | Sunon |
|---|
