EBM-PAPST

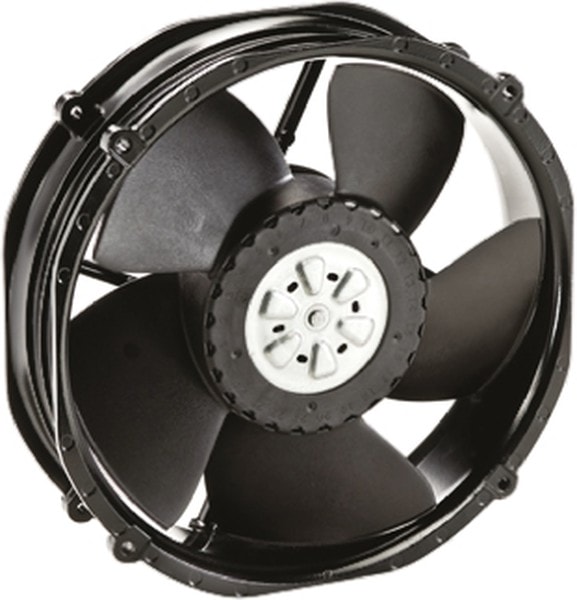

8048288913 Вентилятор Ebmpapst 2218F/2TDHHO 48V 1.0A 48W 220x200x51 4pin () Hirschmann
25970,00 ₽
Описание
2200 FTD Series Tubeaxial Fans
ebm-papst 2200 FTD Series Tubeaxial Fans offer an electronically commutated external rotor motor, making it a fully integrated commutation electronic device. The 2200 FTD Series from ebm-papst also includes electronic protection against reverse polarity, speed signal and PWM(P) or 0-10VDC / PWM (0) speed control as standard features, fiberglass reinforced PA impeller and aluminum housing with grounding lug for screw M4x8, air exhaust over struts, and UL, CSA, VDE approvals on most models.
| Вес, кг | 1 |
| Air Flow | 940m³/h |
| Noise Level | 66dB |
| Series | 2200FTD |
| Supply Voltage | 48 V dc |
| Brand | ebm-papst |
| Factory Pack Quantity | 1 |
| Manufacturer | ebm-papst |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| Features | Speed Signal, Open Collector Output |
| Airflow | 553 CFM(15.7 m3/min) |
| Current Type | DC |
| Depth | 51 mm |
| Factory Pack Quantity: Factory Pack Quantity | 1 |
| IP Rating | IP20 |
| Noise | 66 dBA |
| Operating Supply Voltage | 48 VDC |
| Power Rating | 48 W |
| Termination Style | Wire Leads-4 |
| Type | Tubeaxial |
| Housing Material | Aluminum |
| Power consumption | 48W |
| speed | 5000 RPM |
| Bearing Type | Ball |
| Part # Aliases | 2218F/2TDHH0 |
| Tradename | S-Force |
| AC or DC Operation | DC |
| Fan Speed | 5000rpm |
| Sensor Type | PWM, Tachometer |
Детали
| Бренд | EBM-PAPST |
|---|
