Orion Fans

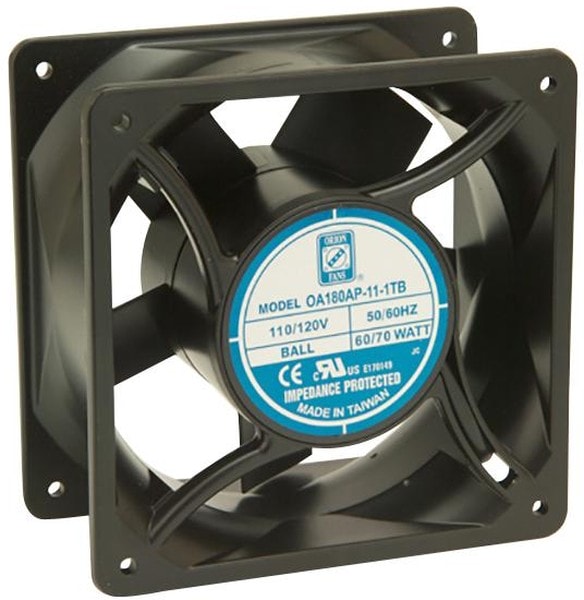

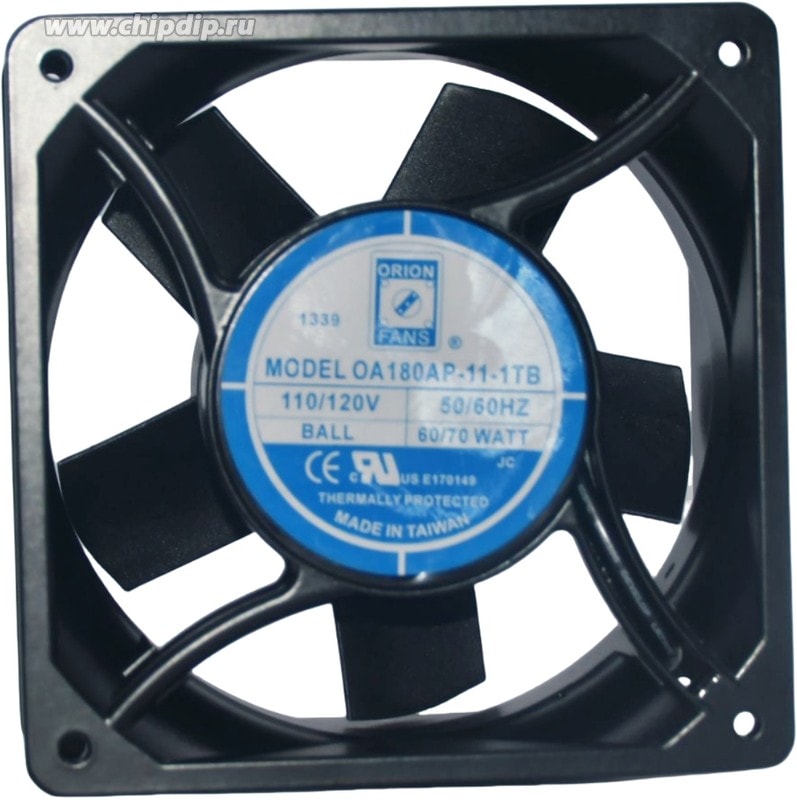

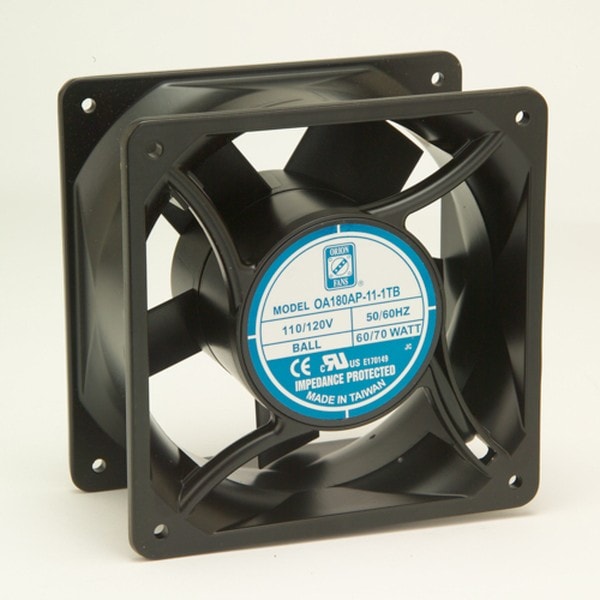

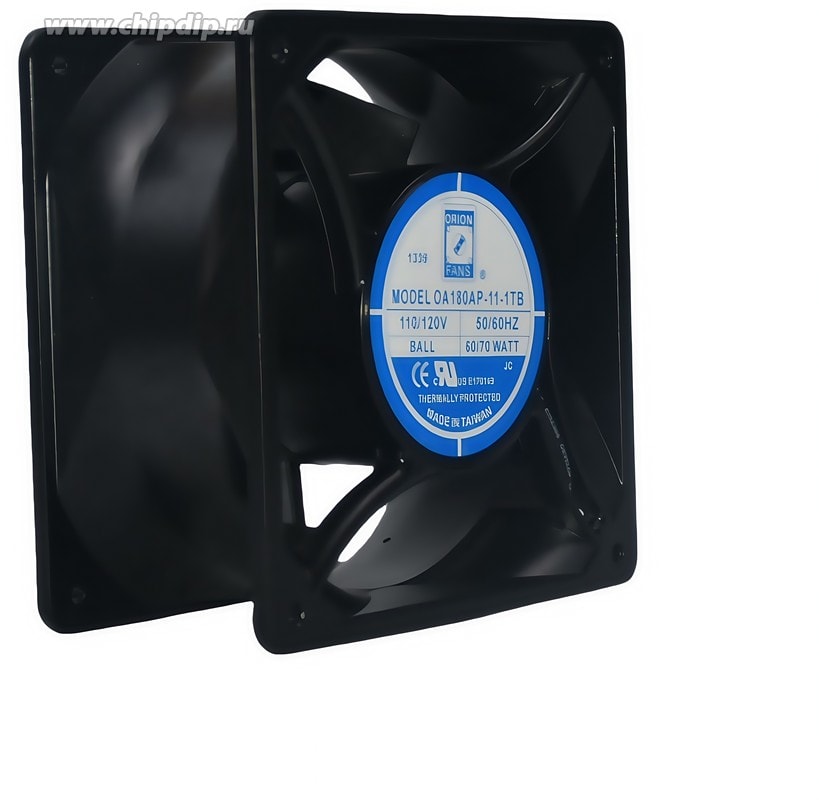

8049670639 Вентилятор Orion Fans OA180AP-11-1TB 110/120V 60/70W 180×89 Hirschmann
16880,00 ₽
Описание
Fan Tubeaxial 115VAC Square — 180mm L x 180mm H Ball 375.0 CFM (10.50mВі/min) 2 Terminals
| Вес, г | 600 |
| Air Flow | 375.0 CFM (10.50mВі/min) |
| Fan Type | Tubeaxial |
| Noise Level | 62 dB |
| Series | OA180AP -> |
| Special Features | None |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Noise | 62.0dB |
| Power Rating | 70 W |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 60000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate (PBT) |
| Material — Frame | Aluminum |
| Operating Temperature | -4 ~ 176В°F (-20 ~ 80В°C) |
| Size / Dimension | Square — 180mm L x 180mm H |
| Termination | 2 Terminals |
| Width | 89.00mm |
| Category | AC Fan |
| COO | TW |
| Housing Material | Die-Cast Aluminum |
| Maximum Airflow | 420CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 115 V |
| Единица измерения | шт |
| Static Pressure | 0.860 in H2O (214.2 Pa) |
| Bearing Type | Ball |
| Power (Watts) | 70.0W |
| RPM | 3350 RPM |
| Voltage — Rated | 115VAC |
| Линейка продукции | OA180AP Series |
| Voltage Range | 60 ~ 130VAC |
| Номинальное напряжение AC | 115V |
| Поток воздуха — куб.фут/мин | 375фут³/мин |
| Тип корпуса вентилятора | Square |
| Тип Подключения Питания | Terminals |
Детали
| Бренд | Orion Fans |
|---|
