Orion Fans

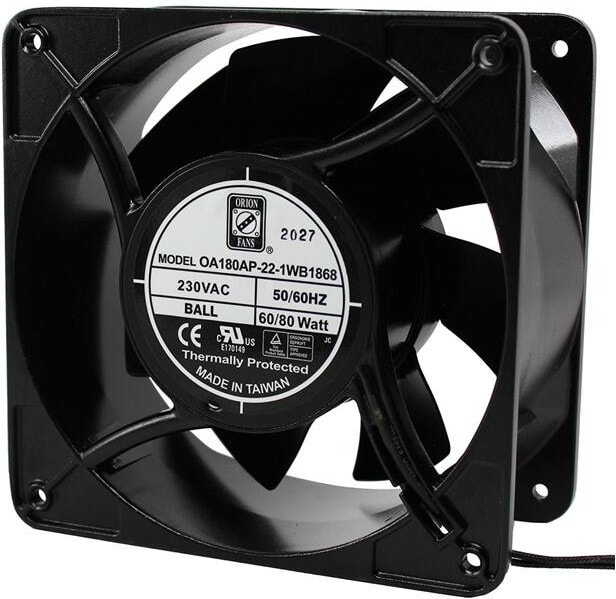

8057126144 OA180AP-22-1WB1868, AC Fans Axial Fan, 176x176x89mm, 230VAC, 380CFM, 80W, 63dBA, 3250RPM, Ball, Wire, IP68 Hirschmann
24610,00 ₽
Описание
Fan Tubeaxial 230VAC Square — 176mm L x 176mm H Ball 380.0 CFM (10.64mВі/min) 2 Wire Leads
| Fan Type | Tubeaxial |
| Series | OA180AP-> |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Features | Thermal Overload Protector(TOP) |
| Approval Agency | CE, cURus, TUV, UR |
| Lifetime @ Temp. | 50000 Hrs @ 55В°C |
| Material — Blade | Steel |
| Material — Frame | Aluminum |
| Operating Temperature | -22 ~ 176В°F(-30 ~ 80В°C) |
| Size / Dimension | Square-176mm L x 176mm H |
| Termination | 2 Wire Leads |
| Weight | 4.2 lbs(1.9 kg) |
| Width | 89.00mm |
| Ingress Protection | IP68-Dust Tight, Waterproof |
| Static Pressure | 0.76 in H2O(189.3 Pa) |
Детали
| Бренд | Orion Fans |
|---|
