Stego

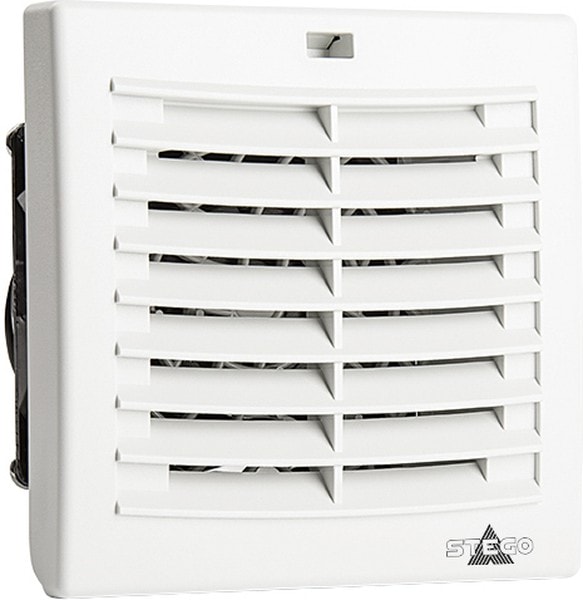

8002716738 01870.1-30, FPI/FPO 018 Series Filter Fan, 48 V dc, DC Operation, 17m³/h Filtered, 23m³/h Unimpeded, IP54, 92 x 92mm Hirschmann
34820,00 ₽
Описание
New air-flap outlet technology for high airflow Easy mounting Protection type test/Environmental rating by independent testing institutes (VDE & UL)
| Вес, г | 300 |
| Configuration | Square |
| Noise Level | 51dB |
| Series | FPI/FPO 018 |
| Supply Voltage | 48 V dc |
| Manufacturer | STEGO |
| IP Rating | IP54 |
| Operating Temperature | -20…70°C |
| Fan efficiency | 23m3/h |
| Kind of fan | axial |
| Leads | lead x2 |
| Type of fan | DC |
| Bearing Type | Ball |
| Current Rating | 63mA |
| AC or DC Operation | DC |
| Fan dimensions | 120x120x81mm |
| Mounting hole diameter | 92x92mm |
| Cable length | 0.3m |
| Termination Type | Screw |
| Manufacturer series | FPI 018 |
| Quantity in set/package | 1pcs. |
| Face Dimensions | 92x92mm |
| Face Width | 92mm |
| Filtered Air Flow | 17m³/h |
| Input Current | 63mA |
| Input Power Rating | 3W |
| Unimpeded Air Flow | 23m³/h |
Детали
| Бренд | Stego |
|---|
