Главная страница » Магазин » 8056502943 7F.30.9.024.1020, 7F Series Filter Fan, 24 V dc, DC Operation, 14m³/h Filtered, 24m³/h Unimpeded, IP89, 120 x 120mm Hirschmann
8056502943 7F.30.9.024.1020, 7F Series Filter Fan, 24 V dc, DC Operation, 14m³/h Filtered, 24m³/h Unimpeded, IP89, 120 x 120mm Hirschmann
24510,00 ₽
Артикул:
8056502943
Категории: Разное, Решетки и фильтры
Описание

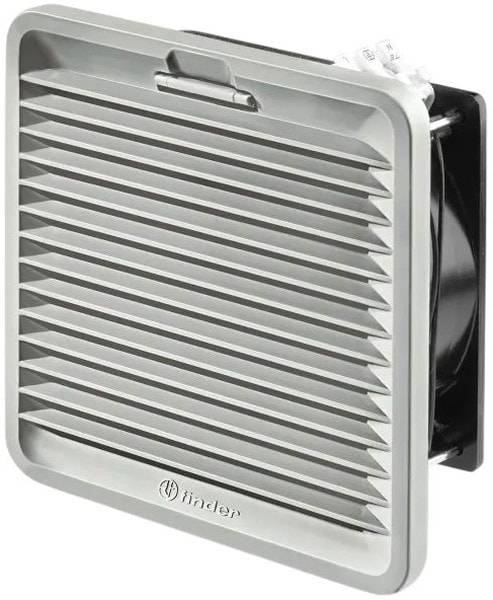

The Finder Standard flow filter fan is designed for active ventilation in outdoor electrical enclosures, promoting efficient heat dissipation and protection against dust and environmental elements. Its weather-resistant housing and low acoustic output make it ideal for industrial settings exposed to external conditions such as rain, frost, and UV radiation. With tool-free installation, it simplifies maintenance while ensuring consistent airflow in rugged environments.
| Noise Level | 37.5dB(A) |
| Series | 7F |
| Special Features | Very Low Acoustic Noise, Minimal Depth within Enclosure, for outdoor application |
| Supply Voltage | 24 V dc |
| Brand | Finder |
| IP Rating | IP89 |
| Bearing Type | Ball |
| AC or DC Operation | DC |
| Termination Type | Wire |
| Face Dimensions | 120x120mm |
| Face Width | 120mm |
| Filtered Air Flow | 14m³/h |
| Input Current | 150mA |
| Input Power Rating | 3.6W |
| Unimpeded Air Flow | 24m³/h |
| Face Height | 120mm |
| Installation Depth | 41.4mm |
Детали
| Бренд | Finder |
|---|
