Sanyo Denki
8001934257 Вентиляторы DC 9GA0412P6H001 Hirschmann
1700,00 ₽
Описание

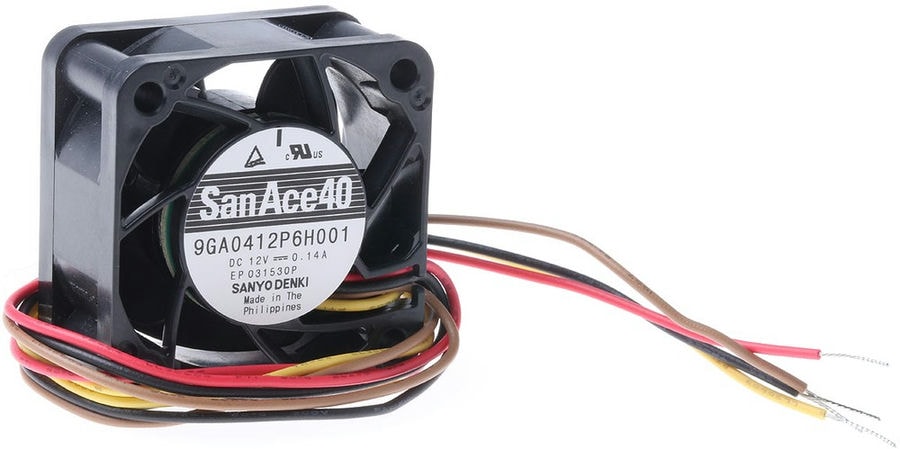

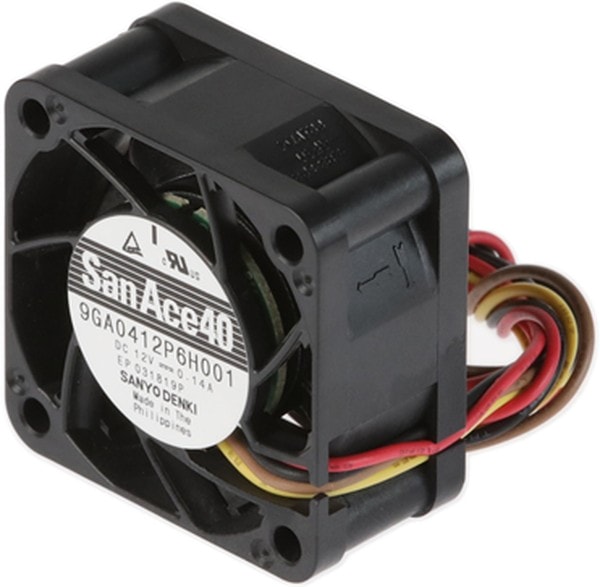

DC Fans DC Axial Fan, 40x40x20mm, 12VDC, High Performance, Low Power, Tachometer, PWM
| Вес, г | 59 |
| Потребляемая мощность, Вт | 1.68 |
| Air Flow | 19.8m³/h |
| Fan Type | Tubeaxial |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 40 |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor(Tach) |
| Noise | 40.0dB(A) |
| Type | DC Fan |
| Approval Agency | CSA, TUV, UL |
| Operating Temperature | -4 ~ 158°F(-20 ~ 70°C) |
| Termination | Lead Wire |
| Width | 40mm |
| Housing Material | Plastic |
| Maximum Airflow | 11.7(cfm) |
| Static Pressure | 0.77 in H2O(191.8 Pa) |
| Bearing Type | Ball |
| Производительность,м.куб./мин. | 0.33 |
| Шум, дБA | 40 |
| Power (Watts) | 1.68 W |
| RPM | 12400 RPM |
| Voltage — Rated | 12VDC |
| AC or DC Operation | DC |
| Sensor Type | PWM, Tachometer |
| Termination Type | Lead Wire |
| Maximum Pressure | 0.77 |
| Product Height (mm) | 20(mm) |
| Product Length (mm) | 40(mm) |
| Product Diameter (mm) | Not Required(mm) |
| Operating Frequency | Not Required(Hz) |
| Operating Input Voltage Range | 10.2 TO 13.8 |
| Mounting Style | Flange |
| Fan Rotation | Clockwise |
| Line Current | 0.14(A) |
| Operating Temp Range | -20C to 70C |
| Operating Temperature (Max) | 70C |
| Operating Temperature (Min) | -20C |
| Rad Hardened | No |
| Speed (Nominal) | 12400(rpm) |
Детали
| Бренд | Sanyo Denki |
|---|
