NMB Technologies

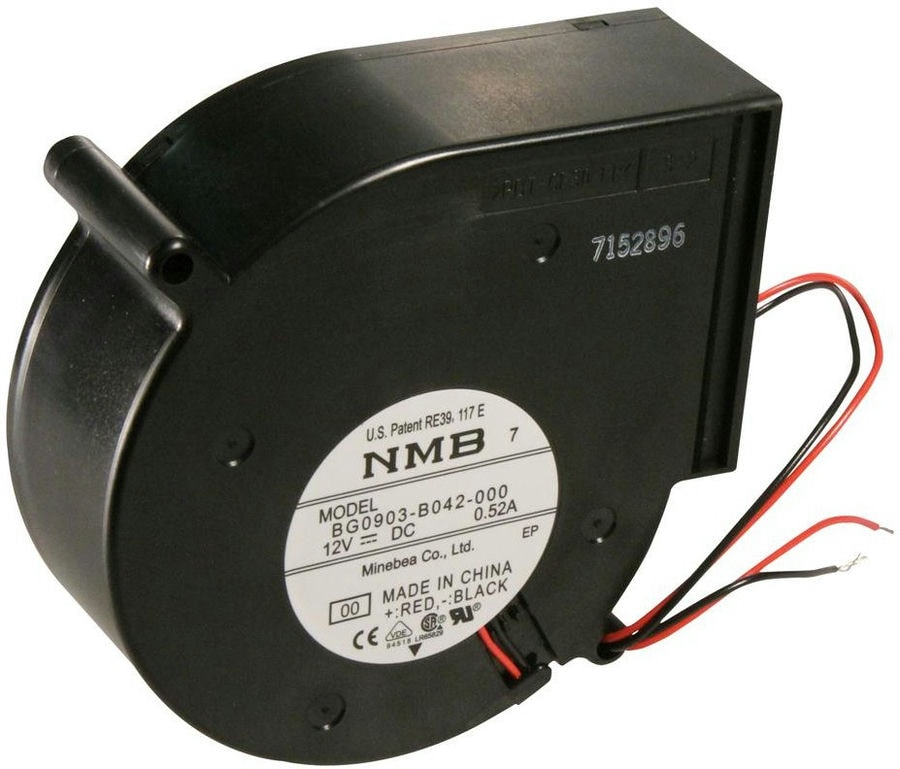

8002011432 Вентиляторы DC BG0903-B042-000-00 Hirschmann
1620,00 ₽
Описание
DC BLOWER, 95 X 33MM, 12V; Blower Type:Centrifugal; Supply Voltage:12V; Current Type:DC; Fan Frame Size:93.5mm; External Depth:33mm; Flow Rate — Metric:0.58mі/min; Flow Rate — Imperial:20.5cu.ft/min; Noise Rating:47.5dBA; Bearing Type:Ball; Power Connection Type:2 Lead Wires; Power Rating:4.8W; Product Range:BG0903 Series; IP Rating:-; SVHC:No SVHC (27-Jun-2018); Colour:Black; Current Rating:400mA; External Height:97mm; External Width:97mm; Frame Dimensions:93.5mm x 97mm x 33mm; Input Power:4.8W; Lead Length:200mm; Material:Plastic; Operating Temperature Max:60°C; Operating Temperature Min:-10°C; Operating life Time:100000h; Power Consumption:4.8W; Speed Range Max:2700rpm; Weight:210g
| Вес, г | 210 |
| Потребляемая мощность, Вт | 4.8 |
| Series | BG0903 |
| Тип подшипника | Ball |
| Brand | NMB Technologies |
| Factory Pack Quantity | 40 |
| Manufacturer | NMB Technologies |
| Product Category | Blowers |
| Product | Blowers |
| Airflow | 20.5 CFM |
| Current Type | DC |
| Operating Supply Voltage | 13.8 V |
| Termination Style | Wire Leads |
| Type | Centrifugal |
| Housing Material | Plastic |
| RoHS | Details |
| speed | 2700 RPM |
| Part # Aliases | 09533GA-12K-AA-00 |
| Pressure Type | 0.61 in H2O |
| Шум, дБA | 47.5 |
| Height | 95 mm |
| Size | 95 mm |
| Length | 33 mm |
Детали
| Бренд | NMB Technologies |
|---|
