CUI Inc

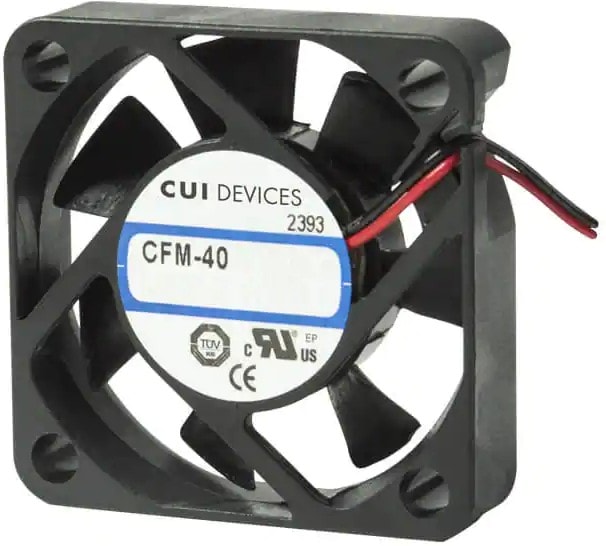

8002862425 CFM-4010-13-10, 12 V, 0.10 A, 40 x 40 x 10.6 mm, DC Fan Axial Hirschmann
1920,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 40mm L x 40mm H Ball 10.0 CFM (0.280mВі/min) 2 Wire Leads
| Air Flow | 10.0 CFM (0.280mВі/min) |
| Fan Type | Tubeaxial |
| Series | CFM-40 -> |
| Размеры рамы,мм | 40×40 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 10.6 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Package | Tray |
| RoHS Status | RoHS Compliant |
| Features | Auto Restart |
| Noise | 37.0dB(A) |
| Approval Agency | CE, cURus, TUV |
| Lifetime @ Temp. | 70000 Hrs @ 45В°C |
| Material — Blade | Polybutylene Terephthalate (PBT) |
| Material — Frame | Polybutylene Terephthalate (PBT) |
| Operating Temperature | 14 ~ 158В°F (-10 ~ 70В°C) |
| Size / Dimension | Square — 40mm L x 40mm H |
| Termination | 2 Wire Leads |
| Weight | 0.032 lb (14.51 g) |
| Width | 10.60mm |
| Current Rating (Amps) | 0.100A |
| Static Pressure | 0.290 in H2O (72.2 Pa) |
| Bearing Type | Ball |
| Power (Watts) | 1.56W |
| RPM | 8300 RPM |
| Voltage — Rated | 12VDC |
| Video File | CUI Devices CFM Series DC Axial Fans | Digi-Key Da |
| Voltage Range | 6 ~ 13.8VDC |
Детали
| Бренд | CUI Inc |
|---|
