EBM-PAPST

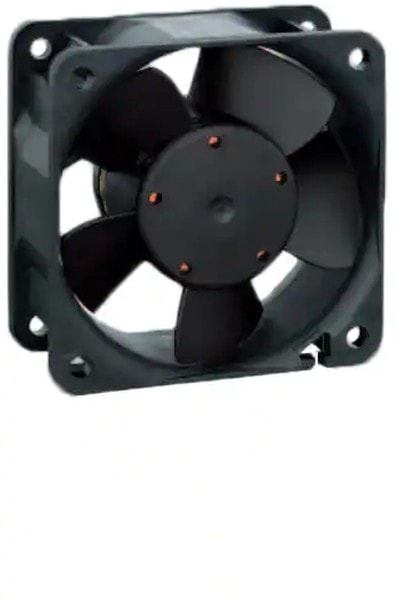

8002933964 612NGNI, DC Fan Axial Sintec-Sleeve Bearing 12V 8V to 12.6V 24.1CFM 35dB 60 X 60 X 25.4mm Hirschmann
8700,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 60mm L x 60mm H Sintec 24.1 CFM (0.676mВі/min) 2 Wire Leads
| Fan Type | Tubeaxial |
| Noise Level | 35 dB |
| Series | 600N-> |
| Special Features | Internal Temperature Sensor |
| Размеры рамы,мм | 60×60 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 25.4 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Bulk |
| Features | Locked Rotor Protection |
| Noise | 53.0dB(A) |
| Power Rating | 2.4 W |
| Approval Agency | CE, CSA, UL, VDE |
| Lifetime @ Temp. | 70000 Hrs @ 40В°C |
| Material — Blade | Polyamide(PA), Nylon, Fiberglass Reinforced |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Operating Temperature | -4 ~ 149В°F(-20 ~ 65В°C) |
| Size / Dimension | Square-60mm L x 60mm H |
| Termination | 2 Wire Leads |
| Weight | 0.146 lb(66.22 g) |
| Width | 25.40mm |
| Category | DC Fan |
| COO | HU |
| Housing Material | Plastic |
| Maximum Airflow | 24.1 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 12 V |
| Единица измерения | шт |
| Производительность,м.куб./мин. | 0.67 |
| Voltage Range | 8 ~ 12.6VDC |
Детали
| Бренд | EBM-PAPST |
|---|
