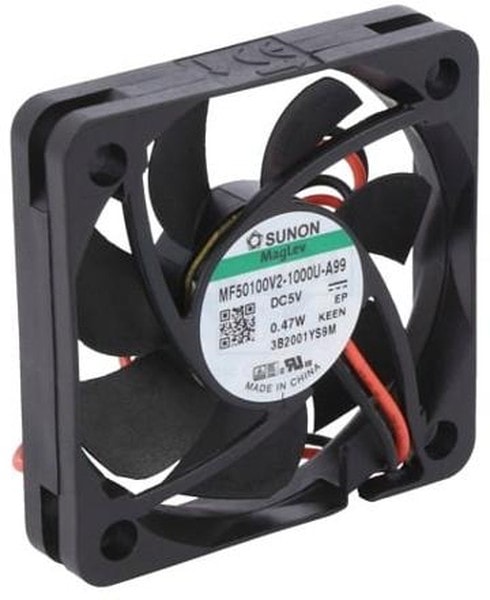

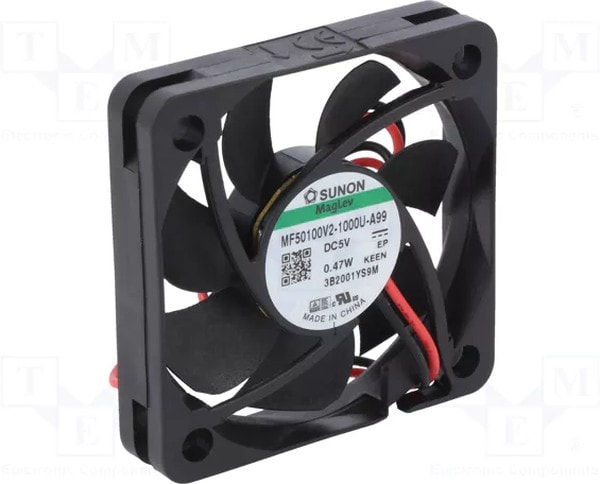

8003262526 MF50100V2-1000U-A99, Вентилятор осевой, 5ВDC, 50x50x10мм, 18,7куб.м/ч, 25,6дБА, Vapo () Hirschmann
1070,00 ₽
Metaverse Solutions
Sunon Metaverse offers compact thermal solutions for wearable augmented reality (AR), virtual reality (VR), and mixed reality (MR) devices that include high-airflow and lightweight thermal fan solutions. When the three types of realities are combined, an extended reality (XR) is created that makes the novel Metaverse possible. The use of XR devices with immersion technology allows users to connect to a virtual platform via game consoles and experience a new reality, one that provides innovative and interactive forms of entertainment. Metaverse users can move from one platform to another to work and communicate with others while sporting lightweight XR headsets that make the transition from reality to the virtual world seamless.
| Тип | осевой |
| Вес, г | 19 |
| Потребляемая мощность, Вт | 430 |
| Fan Type | Tubeaxial |
| Noise Level | 25.6dBA |
| Series | MagLevВ® MF |
| Тип подшипника | VAPO |
| Размеры рамы,мм | 50×10 |
| Рабочее напряжение,В | 5 |
| Толщина,мм | 10 |
| Brand | Sunon |
| Manufacturer | Sunon Fans |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| Features | Auto Restart |
| Current Type | DC |
| Factory Pack Quantity: Factory Pack Quantity | 308 |
| Termination Style | Wire Leads-2 |
| Type | Axial |
| Lifetime @ Temp. | 70000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Operating Temperature | -10…70°C |
| Size / Dimension | Square-50mm L x 50mm H |
| Termination | 2 Wire Leads |
| Weight | 0.043 lb(19.5g) |
| Width | 10.00mm |
| Enclosure material | thermoplastic |
| Fan efficiency | 18.7m3/h |
| Impeller material | thermoplastic |
| Kind of fan | axial |
| Leads | lead x2 |
| Type of fan | DC |
| Housing Material | Polybutylene Terephthalate(PBT) |
| Power consumption | 0.43W |
| Current Rating (Amps) | 0.085A |
| Ingress Protection | — |
| Static Pressure | 2.79mm H2O |
| Current Rating | 85mA |
| Part # Aliases | D05062330G-01 |
| Pressure Type | 0.11 in H2O |
| Частота вращения,об./мин. | 4800 |
| Производительность,м.куб./мин. | 0.31 |
| Шум, дБA | 25.6 |
| Tradename | MagLev |
| Cable length | 0.295m |
| Part Status | Active |
| Flammability rating | UL94V-0 |
| Voltage Range | 3.5 ~ 6VDC |
| Fan motor | brushless DC |
| Insulation class | A |
| Kind of Bearing | Vapo |
| Rotational rate/speed | 4800rpm |
| Current and power consumption tolerance | ±15% |
| Min. insulation resistance | 10MΩ |
| Approvals | CE, cURus, TUV, UL |
| Operating voltage | 3.5…6V DC |
| Additional functions | autorestart |
| Бренд | Sunon |
|---|
