Orion Fans

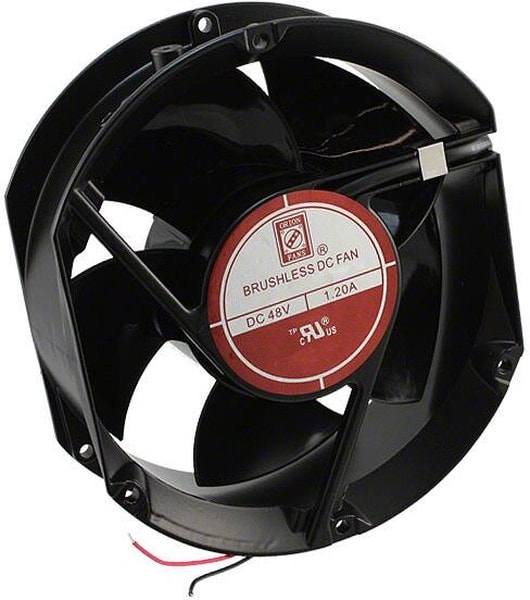

8004628163 OD172SAP-48HBXC, DC Fans DC Fan, High Performance, 172x150x51mm, 48VDC, 307CFM, 1.2A, 67dBA, Ball, Wire Hirschmann
18340,00 ₽
Описание
Fan Tubeaxial 48VDC Rectangular/Rounded — 172mm L x 150mm H Ball 307.0 CFM (8.60mВі/min) 2 Wire Leads
| Вес, г | 0.01 |
| Потребляемая мощность, Вт | 46 |
| Fan Type | Tubeaxial |
| Series | OD172S XC-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 172×150 |
| Рабочее напряжение,В | 48 |
| Толщина,мм | 51 |
| Питание | 2pin |
| Brand | Orion Fans |
| Manufacturer | Orion Fans |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart |
| Current Type | DC |
| Factory Pack Quantity: Factory Pack Quantity | 1 |
| Noise | 67.0dB |
| Termination Style | Wire Leads-2 |
| Type | Axial |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 65000 Hrs @ 45В°C |
| Material — Blade | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Material — Frame | Aluminum |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Rectangular/Rounded-172mm L x 150mm H |
| Termination | 2 Wire Leads |
| Width | 50.80mm |
| Housing Material | Aluminum |
| Current Rating (Amps) | 1.2A |
| Static Pressure | 1.6 in H2O(398.6 Pa) |
| Pressure Type | 40 mmAq |
| Частота вращения,об./мин. | 4600 |
| Производительность,м.куб./мин. | 307 |
| Шум, дБA | 67 |
| Voltage Range | 24 ~ 55VDC |
Детали
| Бренд | Orion Fans |
|---|
