Orion Fans

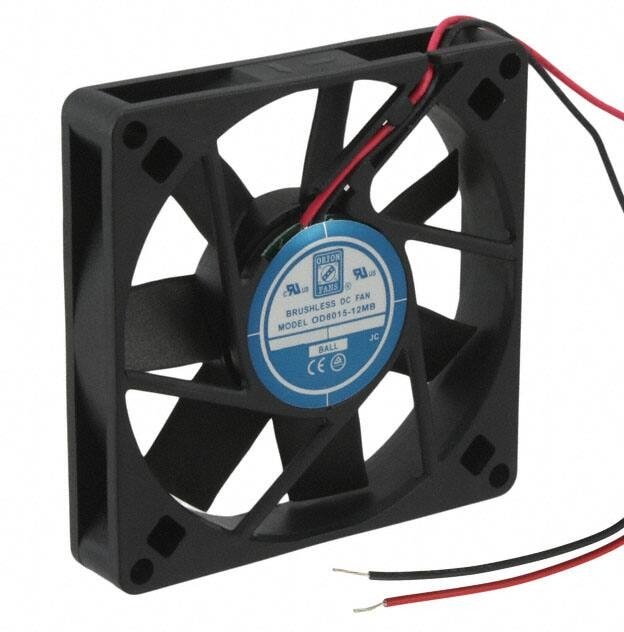

8004715786 OD8015-12MB, DC Fans DC Fan, 80x80x15mm, 12VDC, 23CFM, 0.12A, 26dBA, 2500RPM, Dual Ball, 2xWire 24AWG Hirschmann
1830,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 80mm L x 80mm H Ball 23.0 CFM (0.644mВі/min) 2 Wire Leads
| Вес, г | 63 |
| Потребляемая мощность, Вт | 1.44 |
| Fan Type | Tubeaxial |
| Series | OD8015-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 80×80 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 15 |
| Питание | 2pin |
| Brand | Orion Fans |
| Manufacturer | Orion Fans |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart, Polarity Protection |
| Current Type | DC |
| Factory Pack Quantity: Factory Pack Quantity | 1 |
| Noise | 26.0dB |
| Termination Style | Wire Leads-2 |
| Type | Axial |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 60000 Hrs @ 45В°C |
| Material — Blade | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Operating Temperature | -4 ~ 176В°F(-20 ~ 80В°C) |
| Size / Dimension | Square-80mm L x 80mm H |
| Termination | 2 Wire Leads |
| Width | 15.00mm |
| Housing Material | Polybutylene Terephthalate(PBT) |
| Current Rating (Amps) | 0.050A |
| Static Pressure | 0.07 in H2O(17.4 Pa) |
| Частота вращения,об./мин. | 2500 |
| Производительность,м.куб./мин. | 23 |
| Шум, дБA | 26 |
| Voltage Range | 8 ~ 16VDC |
Детали
| Бренд | Orion Fans |
|---|
