Delta Electonics

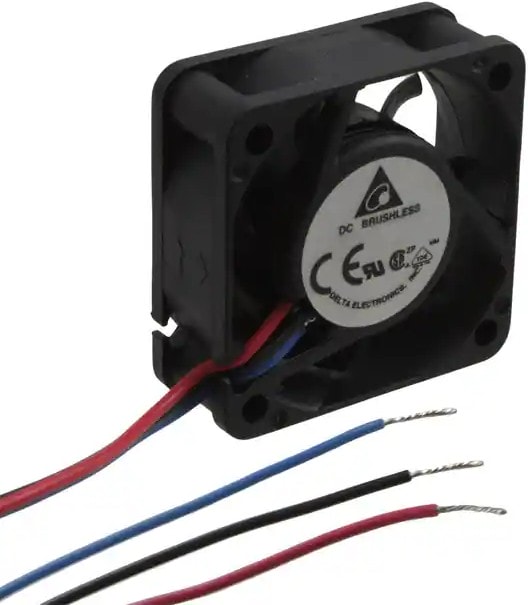

8004746698 AFB0412HB-F00, DC Fans DC Tubeaxial Fan, 40x15mm, 12VDC, Ball Bearing, 3x Lead Wires, Tachometer Hirschmann
2440,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 40mm L x 40mm H Ball 9.5 CFM (0.266mВі/min) 3 Wire Leads
| Вес, г | 25 |
| Потребляемая мощность, Вт | 1.2 |
| Fan Type | Tubeaxial |
| Series | AFB-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 40×40 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 15 |
| Питание | 3pin |
| Brand | Delta Electronics |
| Manufacturer | Delta Electronics |
| Packaging | Bulk |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Locked Rotor Protection, Speed Sensor(Tach) |
| Airflow | 9.46 CFM(0.27 m3/min) |
| Current Type | DC |
| Depth | 15 mm |
| Factory Pack Quantity: Factory Pack Quantity | 448 |
| Noise | 28.5dB(A) |
| Operating Supply Voltage | 12 VDC |
| Power Rating | 1.2 W |
| Termination Style | Wire Leads-3 |
| Type | Tubeaxial |
| Approval Agency | CE, CSA, UL, VDE |
| Lifetime @ Temp. | 70000 Hrs @ 40В°C |
| Material — Blade | Plastic |
| Material — Frame | Plastic |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-40mm L x 40mm H |
| Termination | 3 Wire Leads |
| Weight | 0.057 lb(25.85 g) |
| Width | 15.00mm |
| Housing Material | Plastic |
| speed | 7000 RPM |
| Current Rating (Amps) | 0.100A |
| Static Pressure | 0.272 in H2O(67.7 Pa) |
| Bearing Type | Ball |
| Pressure Type | 6.9 mmAq |
| Частота вращения,об./мин. | 7000 |
| Производительность,м.куб./мин. | 9.5 |
| Voltage Range | 7 ~ 13.8VDC |
| Environmental Information | http://www.delta-fan.com/Download/Compliance/RoHS. |
Детали
| Бренд | Delta Electonics |
|---|
