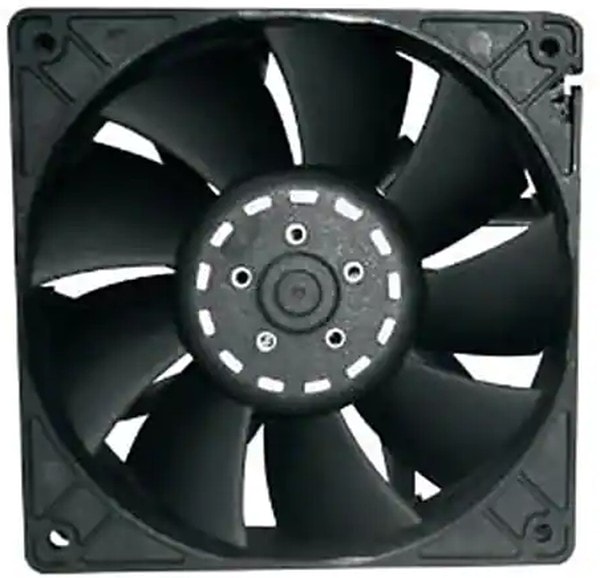

8005183982 OD1238-12MBXJ10A, DC Fans Fan, Super High AirfloW, Ball, Wire, Open Collector Tach/PWM Hirschmann
8160,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 120mm L x 120mm H Ball 207.0 CFM (5.80mВі/min) 4 Wire Leads
| Вес, г | 375 |
| Потребляемая мощность, Вт | 27.6 |
| Fan Type | Tubeaxial |
| Series | OD1238-> |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 12 |
| Питание | 4pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | PWM Control, Speed Sensor(Tach) |
| Noise | 63.0dB |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 70000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-120mm L x 120mm H |
| Termination | 4 Wire Leads |
| Weight | 0.827 lb(375.12 g) |
| Width | 38.00mm |
| Current Rating (Amps) | 2.3A |
| Static Pressure | 1.044 in H2O(260.0 Pa) |
| Частота вращения,об./мин. | 5000 |
| Производительность,м.куб./мин. | 207 |
| Voltage Range | 7 ~ 13.2VDC |
Детали
| Бренд | Orion Fans |
|---|
