Orion Fans

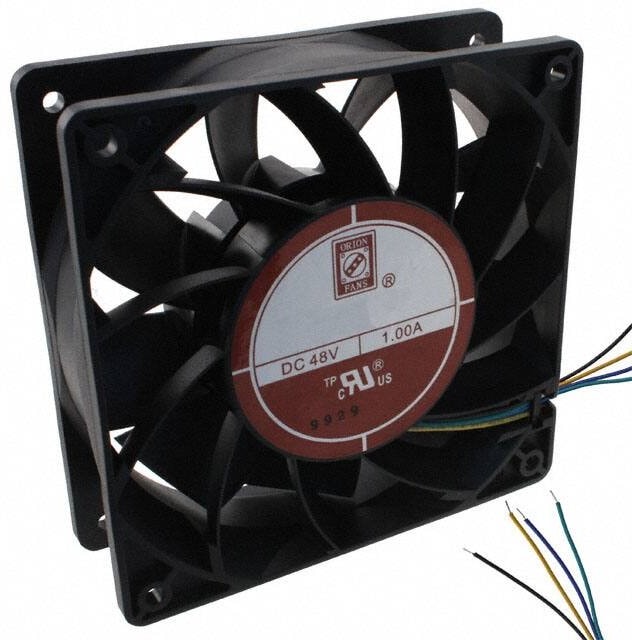

8005183992 OD1238-48HBVXC10A, DC Fans Vane Axial Fan, High Static Pressure, 120x120x38mm, 48VDC, Wire 24AWG, Tach/PWM Hirschmann
8230,00 ₽
Описание
Fan Tubeaxial 48VDC Square — 120mm L x 120mm H Ball 226.0 CFM (6.33mВі/min) 4 Wire Leads
| Вес, г | 353 |
| Потребляемая мощность, Вт | 48 |
| Fan Type | Tubeaxial |
| Series | OD1238 VA-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 48 |
| Толщина,мм | 38 |
| Питание | 4pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart, PWM Control, Speed Sensor(Tach) |
| Noise | 65.0dB |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 65000 Hrs @ 45В°C |
| Material — Blade | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-120mm L x 120mm H |
| Termination | 4 Wire Leads |
| Width | 38.00mm |
| Current Rating (Amps) | 1A |
| Static Pressure | 1.35 in H2O(336.3 Pa) |
| Частота вращения,об./мин. | 5000 |
| Производительность,м.куб./мин. | 226 |
| Video File | Vane Axial Self Levitating from Orion Fans |
| Voltage Range | 24 ~ 55VDC |
Детали
| Бренд | Orion Fans |
|---|
