Orion Fans

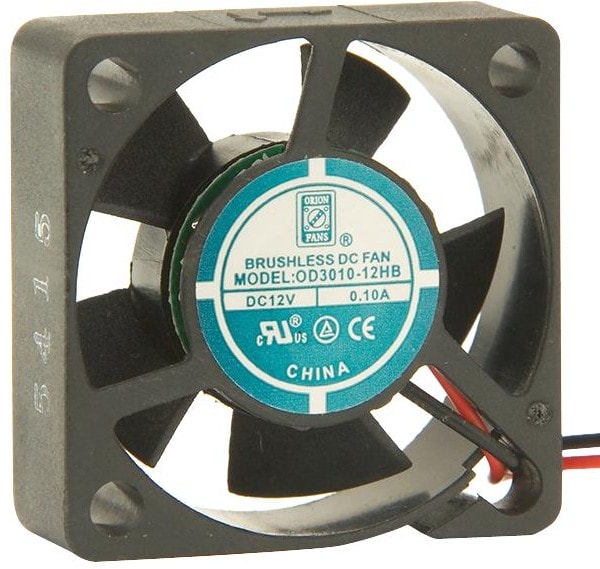

8005184022 OD3010-12HB, DC Fans DC Fan, 30x30x10mm, 12VDC, 4.6CFM, 0.1A, 31dBA, 10000RPM, Dual Ball, Lead Wires Hirschmann
2040,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 30mm L x 30mm H Ball 5.0 CFM (0.140mВі/min) 2 Wire Leads
| Fan Type | Tubeaxial |
| Series | OD3010-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 30×30 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 10 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| IP Rating | IP55 |
| Noise | 32.0dB |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 60000 Hrs @ 45В°C |
| Material — Blade | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-30mm L x 30mm H |
| Termination | 2 Wire Leads |
| Width | 10.20mm |
| COO | CA |
| RoHS | Yes |
| Supplier Standard Pack | 100 |
| Единица измерения | шт |
| Current Rating (Amps) | 0.100A |
| Static Pressure | 0.2 in H2O(49.8 Pa) |
| Bearing Type | Ball Bearing |
| Current Rating | 100mA |
| Air Flow — CFM | 4.6CFM |
| External Depth | 10.2mm |
| Fan Frame Size | 30mm |
| Fan Frame Type | Square |
| Noise Rating | 31dBA |
| Power Connection Type | 2 Lead Wires |
| Product Range | OD3010 Series |
| Rated Speed | 11000rpm |
| Частота вращения,об./мин. | 10000 |
| Производительность,м.куб./мин. | 4.6 |
| Шум, дБA | 31 |
| Voltage Range | 8 ~ 17VDC |
| Supply Voltage VDC | 12V |
Детали
| Бренд | Orion Fans |
|---|
