Orion Fans

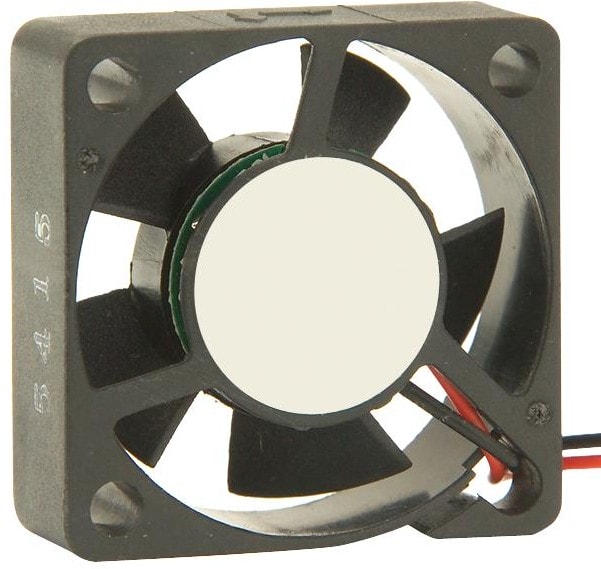

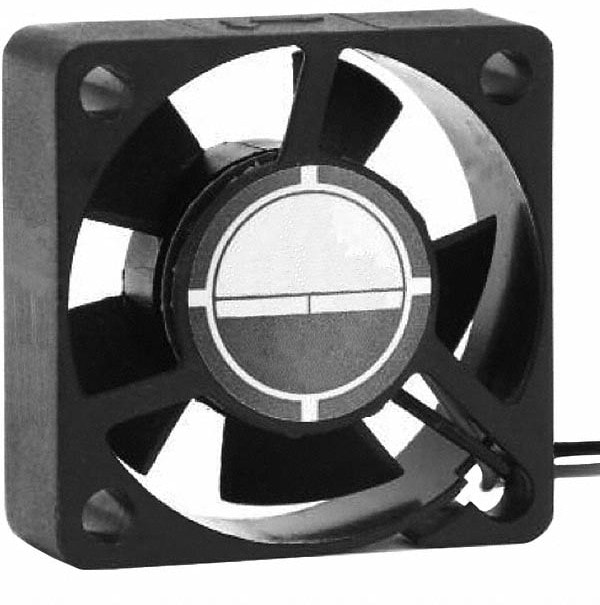

8005184024 OD3010-12LB, DC Fans DC Fan, 30x30x10mm, 12VDC, 3CFM, 0.06A, 20dBA, 7000RPM, Dual Ball, Lead Wires Hirschmann
1770,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 30mm L x 30mm H Ball 3.5 CFM (0.098m³/min) 2 Wire Leads
| Вес, г | 10 |
| Потребляемая мощность, Вт | 720 |
| Air Flow | 3.5 CFM(0.098m³/min) |
| Fan Type | Tubeaxial |
| Тип подшипника | Ball |
| Размеры рамы,мм | 30×30 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 10 |
| Brand | Orion Fans |
| Factory Pack Quantity | 500 |
| Manufacturer | Orion Fans |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| Features | Auto Restart, Polarity Protection |
| Current Type | DC |
| IP Rating | IP55 |
| Noise | 23.1dB(A) |
| Termination Style | Wire Leads-2 |
| Type | Axial |
| Approval Agency | cURus, TUV |
| Operating Temperature | -4 ~ 149°F(-20 ~ 65°C) |
| Termination | 2 Wire Leads |
| Width | 10.20mm |
| Housing Material | Polybutylene Terephthalate(PBT) |
| Static Pressure | 0.21 in H2O(52.3 Pa) |
| Bearing Type | Ball Bearing |
| Current Rating | 60mA |
| Air Flow — CFM | 3CFM |
| External Depth | 10.2mm |
| Fan Frame Size | 30mm |
| Fan Frame Type | Square |
| Noise Rating | 26dBA |
| Power Connection Type | 2 Lead Wires |
| Product Range | OD3010 Series |
| Rated Speed | 7000rpm |
| Частота вращения,об./мин. | 7000 |
| Производительность,м.куб./мин. | 3 |
| Шум, дБA | 20 |
| RPM | 8000 RPM |
| Voltage — Rated | 12VDC |
| Supply Voltage VDC | 12V |
Детали
| Бренд | Orion Fans |
|---|
