Orion Fans

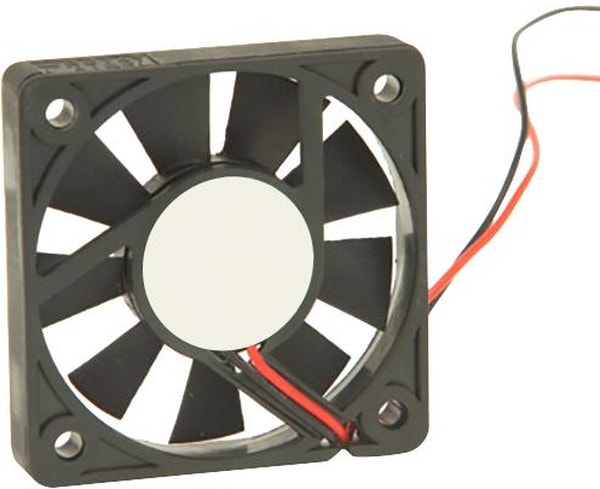

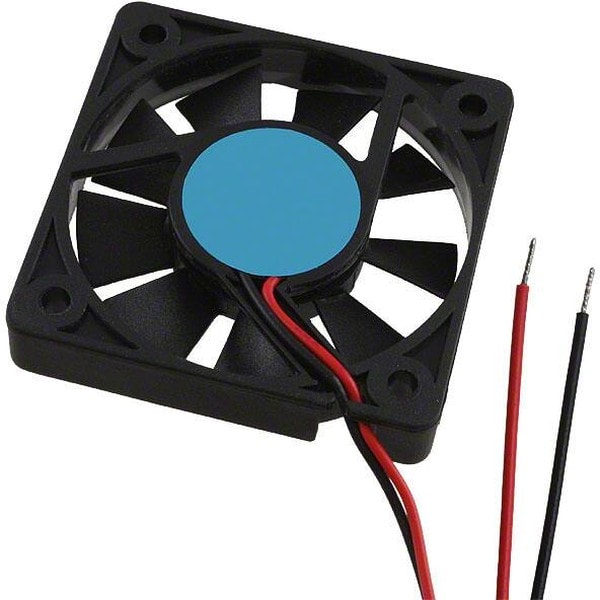

8005184065 OD5210-12MB, DC Fans DC Fan, 52x52x10mm, 12VDC, 10CFM, 0.12A, 32dBA, 5000RPM, Dual Ball, Lead Wires Hirschmann
2380,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 52mm L x 52mm H Ball 10.0 CFM (0.280mВі/min) 2 Wire Leads
| Вес, г | 22 |
| Fan Type | Tubeaxial |
| Noise Level | 32 dB |
| Series | OD5210-> |
| Special Features | None |
| Тип подшипника | Ball |
| Размеры рамы,мм | 52×52 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 10 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Noise | 32.0dB |
| Power Rating | 1.4 W |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 60000 Hrs @ 45В°C |
| Material — Blade | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Operating Temperature | -4 ~ 176В°F(-20 ~ 80В°C) |
| Size / Dimension | Square-52mm L x 52mm H |
| Termination | 2 Wire Leads |
| Width | 10.00mm |
| Category | DC Fan |
| COO | CN |
| Housing Material | Plastic |
| Maximum Airflow | 10 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 12 V |
| Единица измерения | шт |
| Current Rating (Amps) | 0.120A |
| Static Pressure | 0.11 in H2O(27.4 Pa) |
| Bearing Type | Ball Bearing |
| Current Rating | 120mA |
| Air Flow — CFM | 10CFM |
| External Depth | 10mm |
| Fan Frame Size | 52mm |
| Fan Frame Type | Square |
| Noise Rating | 32dBA |
| Power Connection Type | 2 Lead Wires |
| Product Range | OD5210 Series |
| Rated Speed | 5000rpm |
| Частота вращения,об./мин. | 5000 |
| Производительность,м.куб./мин. | 10 |
| Шум, дБA | 32 |
| Voltage Range | 8 ~ 17VDC |
| Supply Voltage VDC | 12V |
Детали
| Бренд | Orion Fans |
|---|
