Orion Fans

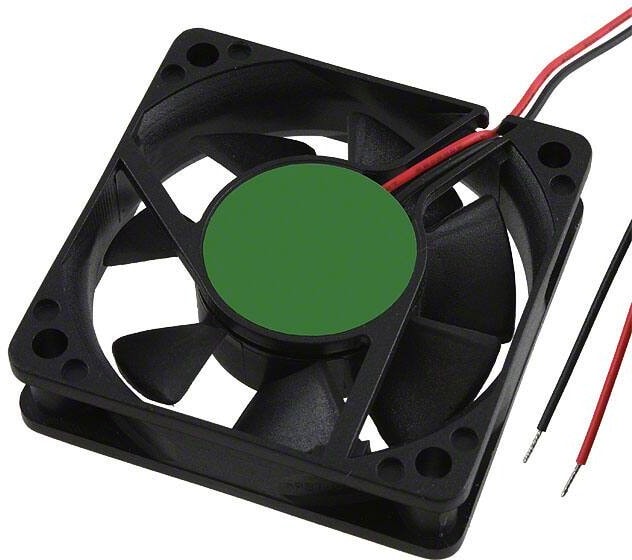

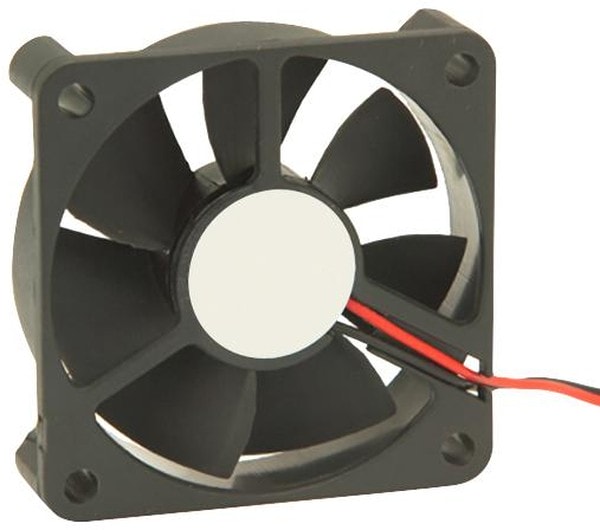

8005184069 OD6015-05HB, DC Fans DC Axial Fan, 60x60x15mm, 5VDC, 20.2CFM, 1.5W, 32.4dBA, 0.19″H2O, 2x Wire Hirschmann
2170,00 ₽
Описание
Fan Tubeaxial 5VDC Square — 60mm L x 60mm H Ball 16.0 CFM (0.448mВі/min) 2 Wire Leads
| Вес, г | 37 |
| Потребляемая мощность, Вт | 1.1 |
| Fan Type | Tubeaxial |
| Series | OD6015-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 60×60 |
| Рабочее напряжение,В | 5 |
| Толщина,мм | 15 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart |
| Noise | 33.0dB |
| Power Rating | 1.5W |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 60000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-60mm L x 60mm H |
| Termination | 2 Wire Leads |
| Weight | 0.081 lb(36.74 g) |
| Width | 15.00mm |
| COO | TW |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Единица измерения | шт |
| Current Rating (Amps) | 0.220A |
| Static Pressure | 0.15 in H2O(37.3 Pa) |
| Bearing Type | Ball Bearing |
| Current Rating | 250mA |
| Air Flow — CFM | 20.2CFM |
| External Depth | 15mm |
| Fan Frame Size | 60mm |
| Fan Frame Type | Square |
| Noise Rating | 32.4dBA |
| Power Connection Type | 2 Lead Wires |
| Product Range | OD6015 Series |
| Rated Speed | 4250rpm |
| Частота вращения,об./мин. | 4500 |
| Производительность,м.куб./мин. | 16 |
| Шум, дБA | 32.4 |
| Supply Voltage VDC | 5V |
Детали
| Бренд | Orion Fans |
|---|
