Orion Fans

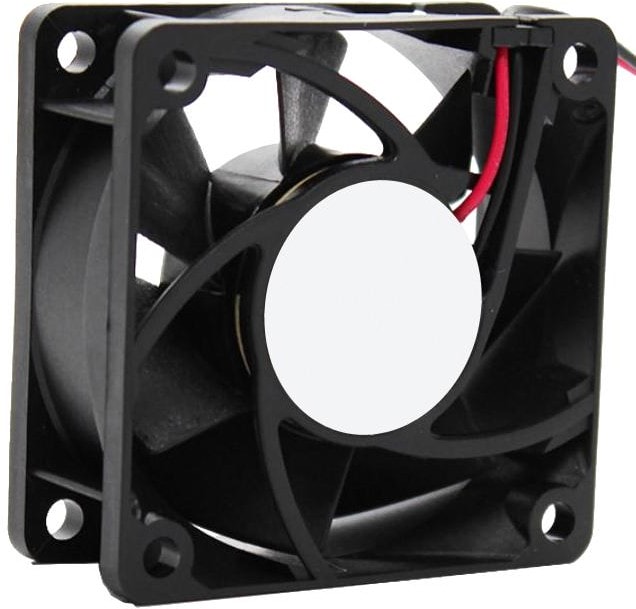

8005184080 OD6025-12HSS, DC Fans DC Fan, 60x60x25mm, 12VDC, 23CFM, 0.23A, 33dBA, 4500RPM, Sealed Sleeve, Leads Hirschmann
1560,00 ₽
Описание
| Вес, г | 69 |
| Noise Level | 35 dB |
| Special Features | None |
| Тип подшипника | Sleeve |
| Размеры рамы,мм | 60×60 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 25 |
| Питание | 2pin |
| ECCN | EAR99 |
| Power Rating | 1.8W |
| Operating Temperature | -10 to 70 °C |
| Termination | Lead Wires |
| Width | 60 mm |
| Category | DC Fan |
| COO | TW |
| Housing Material | Plastic |
| Maximum Airflow | 25 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 12 V |
| Единица измерения | шт |
| Bearing Type | Sleeve Bearing |
| Current Rating | 150mA |
| Air Flow — CFM | 25CFM |
| External Depth | 25mm |
| Fan Frame Size | 60mm |
| Fan Frame Type | Square |
| Noise Rating | 30dBA |
| Power Connection Type | 2-Pin Stranded Wire |
| Product Range | OD6025 Series |
| Rated Speed | 3975rpm |
| Частота вращения,об./мин. | 4500 |
| Производительность,м.куб./мин. | 23 |
| Шум, дБA | 33 |
| AC or DC Operation | DC |
| Flow Rate | 39.1 m³/h |
| Height | 60 mm |
| Current Rating Max. | 230 mA |
| Supply Voltage VDC | 12V |
Детали
| Бренд | Orion Fans |
|---|
