Orion Fans

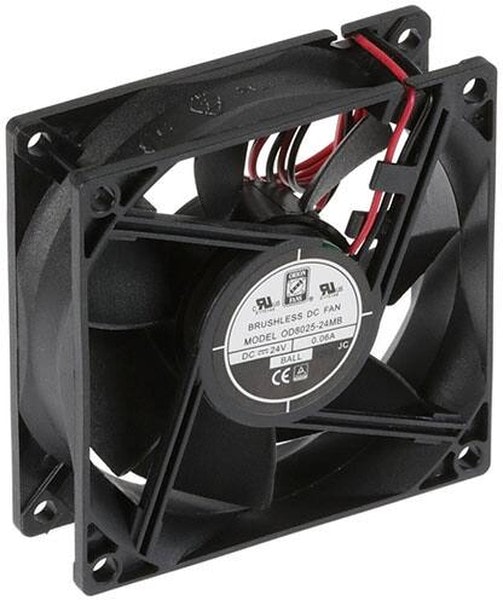

8005184120 OD8025-24MB, DC Fans DC Fan, 80x80x25mm, 24VDC, 31CFM, 0.06A, 28dBA, 2500RPM, Dual Ball, Lead Wires Hirschmann
2400,00 ₽
Описание
Fan Tubeaxial 24VDC Square — 80mm L x 80mm H Ball 31.0 CFM (0.868mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 0.96 |
| Fan Type | Tubeaxial |
| Noise Level | 28 dB |
| Series | OD8025-> |
| Special Features | None |
| Тип подшипника | Ball |
| Размеры рамы,мм | 80×80 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 25 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart |
| Noise | 28.0dB |
| Power Rating | 1.67 W |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 65000 Hrs @ 45В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Operating Temperature | -4 ~ 167В°F(-20 ~ 75В°C) |
| Size / Dimension | Square-80mm L x 80mm H |
| Termination | 2 Wire Leads |
| Weight | 0.191 lb(86.64 g) |
| Width | 25.00mm |
| Category | DC Fan |
| COO | TW |
| Housing Material | Plastic |
| Maximum Airflow | 31 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 24 V |
| Единица измерения | шт |
| Current Rating (Amps) | 0.060A |
| Static Pressure | 0.1 in H2O(24.9 Pa) |
| Частота вращения,об./мин. | 2500 |
| Производительность,м.куб./мин. | 31 |
| Шум, дБA | 28 |
Детали
| Бренд | Orion Fans |
|---|
