Orion Fans

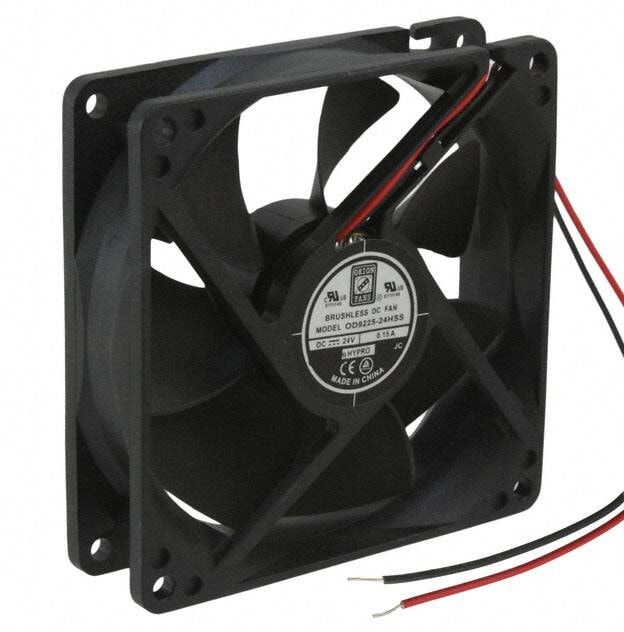

8005184148 OD9225-24HSS, DC Fans DC Fan, 92x92x25mm, 24VDC, 52CFM, 0.15A, 35dBA, 2900RPM, Sealed Sleeve, Leads Hirschmann
1600,00 ₽
Описание
Challenger Sealed Sleeve DC Fans
Orion Fans Challenger Sealed Sleeve DC Fans provide a unique patented sealed sleeve bearing system that has a life expectancy in excess of 50.000 hours. These fans are available in a variety of sizes from 1.6″ x 0.4″ to 4.7″ x1.5″, 12V DC and 24V DC, and RPMs from 2200 to 7800. Orion Fans Challenger DC Fans are offered at a cost effective price point compared to the ball bearing counterparts.
| Вес, г | 99 |
| Потребляемая мощность, Вт | 2.6 |
| Fan Type | Tubeaxial |
| Series | OD9225-> |
| Тип подшипника | Sleeve |
| Размеры рамы,мм | 92×92 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 25 |
| Питание | 2pin |
| Brand | Orion Fans |
| Manufacturer | Orion Fans |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart, Polarity Protection |
| Current Type | DC |
| Factory Pack Quantity: Factory Pack Quantity | 1 |
| Noise | 35.0dB |
| Termination Style | Wire Leads-2 |
| Type | Axial |
| Approval Agency | cURus, TUV |
| Material — Blade | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-92.5mm L x 92.5mm H |
| Termination | 2 Wire Leads |
| Width | 25.00mm |
| Housing Material | Polybutylene Terephthalate(PBT) |
| Current Rating (Amps) | 0.150A |
| Static Pressure | 0.13 in H2O(32.4 Pa) |
| Pressure Type | 3.2 mmAq |
| Частота вращения,об./мин. | 2900 |
| Производительность,м.куб./мин. | 52 |
| Шум, дБA | 35 |
Детали
| Бренд | Orion Fans |
|---|
