Sanyo Denki

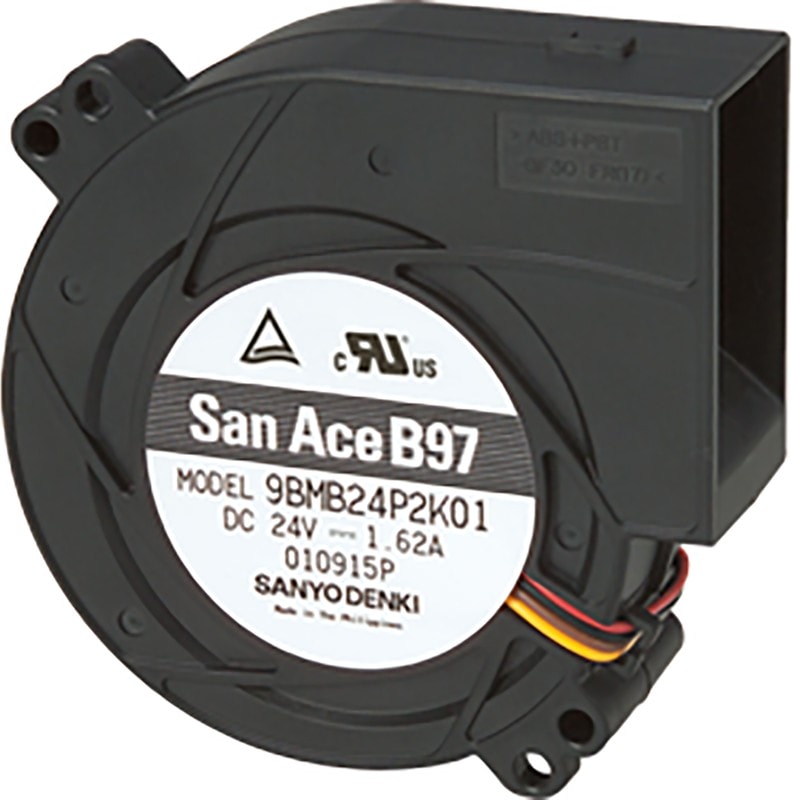

8005415315 9BMB24S201, Blowers & Centrifugal Fans DC Blower, 97x33mm, 24VDC, High Performance, Tachometer Hirschmann
8010,00 ₽
Описание
With high static pressure, Blowers are suitable for cooling equipment with high system impedance and high heat generation such as servers, storage systems, and base stations.
| Вес, г | 190 |
| Air Flow | 43.1cfm |
| Mounting | Flange Mount |
| Noise Level | 59dB(A) |
| Series | San Ace B97 |
| Special Features | Sensor |
| Supply Voltage | 24 V dc |
| Размеры рамы,мм | 97×97 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 33 |
| Product Category | DC Blower |
| Type | Centrifugal |
| Width | 97mm |
| Static Pressure | 610Pa |
| Blower Type | Blower |
| Производительность,м.куб./мин. | 4392 |
| AC or DC Operation | DC |
| Maximum Current | 700mA |
| Fan Speed | 5250rpm |
| Direction of Curve | Backward |
| Mounting hole diameter | 4.5mm |
| Horizontal Hole Spacing | 71mm |
| Mounting Hole Spacing | 71x71mm |
| Sensor Type | PWM |
| Vertical Hole Spacing | 71mm |
| Termination Type | Lead Wire |
| Automotive | Unknown |
| Part Status | Active |
| PPAP | Unknown |
| ECCN (US) | 4A994 |
| EU RoHS | Compliant |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Pressure | 2.45inH2O |
| Minimum Operating Temperature (°C) | -20 |
| Size (Metric) (mm) | 97.1 X 96.5 X 33 |
| Voltage Rating (V) | 24 |
| Power Rating (W) | 16.8 |
| Nominal Speed (r/min) | 5250 |
| Maximum Airflow (CFM) | 43.1 |
| Noise Level (dB) | 59 |
| Bearings | Ball |
| Line Current (A) | 0.7 |
| Operating Input Voltage Range (V) | 12 to 26.4 |
| Inlet Diameter | 56mm |
Детали
| Бренд | Sanyo Denki |
|---|
