Sanyo Denki

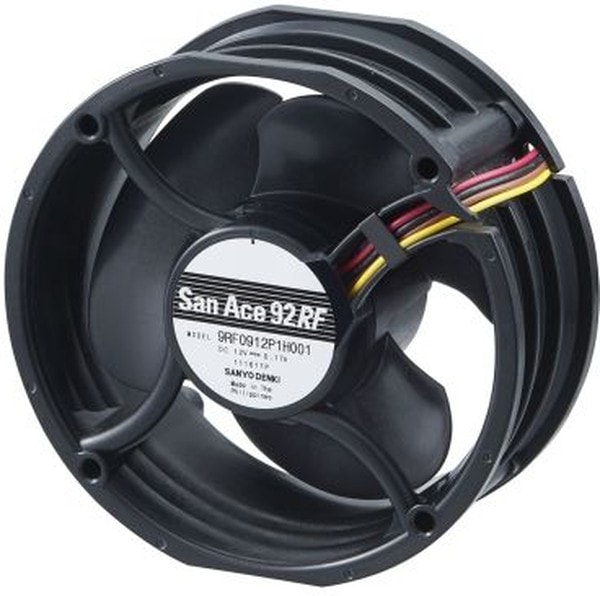

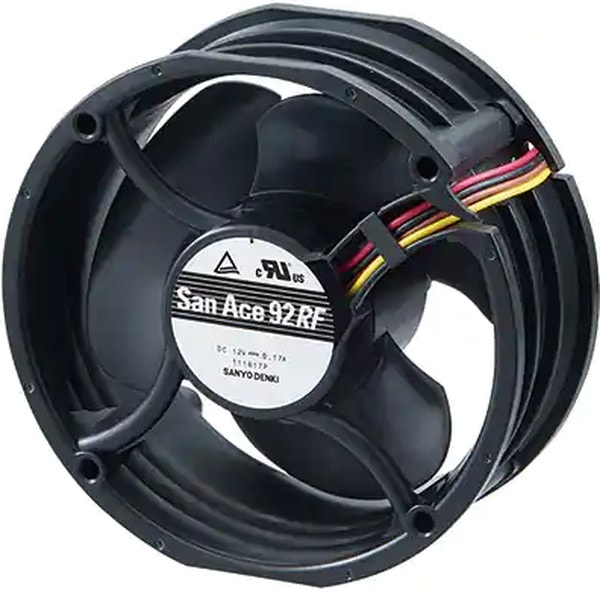

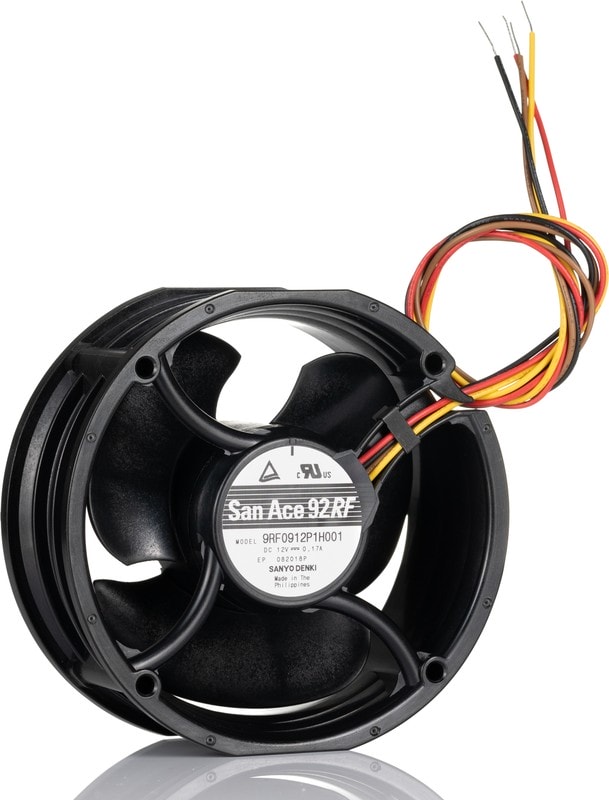

8005415539 9RF0912P1H001, DC Fans DC Axial Fan, Reversible Flow, 92x38mm Round, 12VDC, Tach/PWM Hirschmann
9940,00 ₽
Описание
Fan Tubeaxial 12VDC Round — 92mm Dia Ball 42.4 CFM (1.19mВі/min) 4 Wire Leads
| Вес, г | 150 |
| Потребляемая мощность, Вт | 2 |
| Air Flow | 1.2m³/min |
| Fan Type | Tubeaxial |
| Series | San Ace 92RF-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 92×92 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 38 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | ROHS3 Compliant |
| Features | PWM Control, Reversible Flow, Speed Sensor(Tach) |
| Noise | 39.0dB(A) |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 40000 Hrs @ 60В°C |
| Material — Blade | Plastic |
| Material — Frame | Plastic |
| Operating Temperature | -4 ~ 158В°F(-20 ~ 70В°C) |
| Size / Dimension | Round-92mm Dia |
| Termination | 4 Wire Leads |
| Width | 38.00mm |
| Current Rating (Amps) | 0.17A |
| Static Pressure | 0.63 in H2O(156.9 Pa) |
| Ток,А | 170 |
| Частота вращения,об./мин. | 5300 |
| Шум, дБA | 39 |
| AC or DC Operation | DC |
| Sensor Type | PWM |
| Termination Type | Lead Wire |
| Video File | Summary of SanAce Cooling SystemsSanAce 136 RFSanA |
| Voltage Range | 10.2 ~ 13.8VDC |
Детали
| Бренд | Sanyo Denki |
|---|
