EBM-PAPST

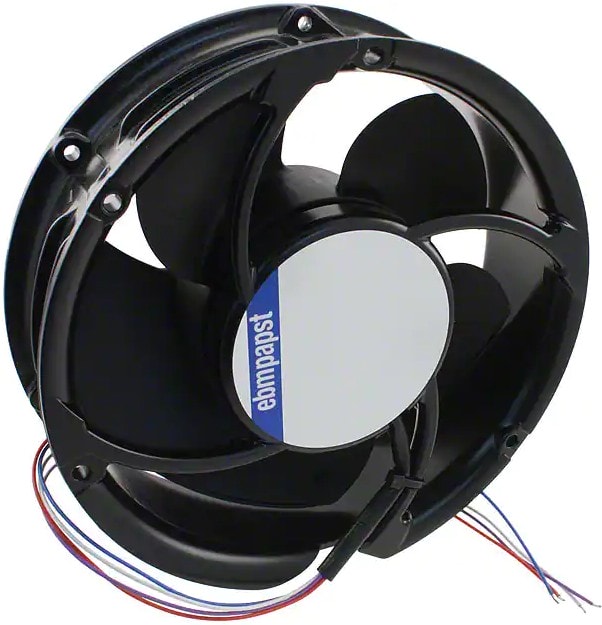

8005738331 6312/2TDHP, Fan Tubeaxial 12VDC Round — 172mm Dia Ball 353.0 CFM (9.88m³/min) 4 Wire Leads Hirschmann
38500,00 ₽
Описание
Fan Tubeaxial 12VDC Round — 172mm Dia Ball 353.0 CFM (9.88mВі/min) 4 Wire Leads
| Потребляемая мощность, Вт | 41 |
| Fan Type | Tubeaxial |
| Noise Level | 60 dB |
| Series | 6300TD-> |
| Special Features | Tachometer Output, External Temperature Sensor, PWM speed control |
| Тип подшипника | Ball |
| Размеры рамы,мм | 172×172 |
| Рабочее напряжение,В | 12 |
| Питание | 4pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | ROHS3 Compliant |
| Features | PWM Control, Speed Sensor(Tach) |
| Noise | 64.0dB(A) |
| Power Rating | 40 W |
| Lifetime @ Temp. | 70000 Hrs @ 40В°C |
| Material — Blade | Polyamide(PA), Nylon, Fiberglass Reinforced |
| Material — Frame | Aluminum |
| Operating Temperature | -4 ~ 158В°F(-20 ~ 70В°C) |
| Size / Dimension | Round-172mm Dia |
| Termination | 4 Wire Leads |
| Weight | 2 lbs(907.2 g) |
| Width | 50.80mm |
| Category | DC Fan |
| COO | DE |
| Housing Material | DieCast Aluminum |
| Maximum Airflow | 353 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 12 V |
| Единица измерения | шт |
| Частота вращения,об./мин. | 6000 |
| Производительность,м.куб./мин. | 353 |
| Video File | S Force Fans |
| Voltage Range | 8 ~ 16VDC |
| Tachometer Signal | Yes |
| PWM Control Signal | Yes |
Детали
| Бренд | EBM-PAPST |
|---|
