Orion Fans

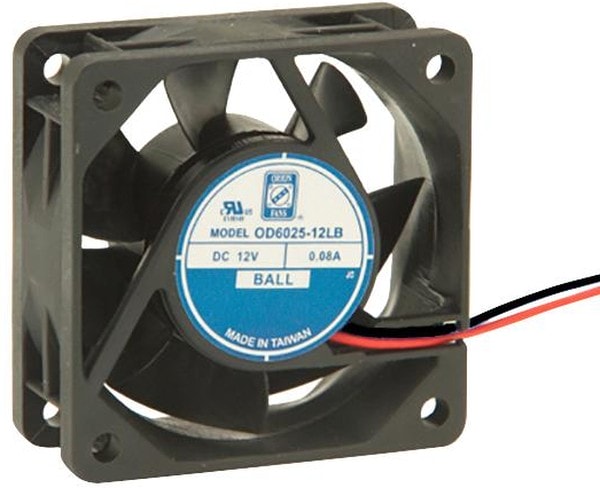

8005752496 OD6025-12LB, Fan Tubeaxial 12VDC Square — 60mm L x 60mm H Ball 14.0 CFM (0.392m³/min) 2 Wire Leads Hirschmann
2250,00 ₽
Описание
DC Fan Axial Ball Bearing 12V 8V to 13.8V 14CFM 20dB 60 X 60 X 25mm Low Speed
| Mounting | Flange Mount |
| Special Features | Low Speed |
| Размеры рамы,мм | 60×60 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 25 |
| Питание | 2pin |
| Product Category | DC Fan |
| Power Rating | 1W |
| Type | Axial |
| Bearing Type | Ball Bearing |
| Current Rating | 80mA |
| Air Flow — CFM | 14CFM |
| External Depth | 25mm |
| Fan Frame Size | 60mm |
| Fan Frame Type | Square |
| Noise Rating | 20dBA |
| Power Connection Type | 2 Lead Wires |
| Product Range | OD6025 Series |
| Rated Speed | 2480rpm |
| Частота вращения,об./мин. | 2500 |
| Производительность,м.куб./мин. | 13 |
| Шум, дБA | 19 |
| Automotive | Unknown |
| Part Status | Active |
| PPAP | Unknown |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Pressure | 0.14inH2O |
| Minimum Operating Temperature (°C) | -20 |
| Shape | Square |
| Size (Metric) (mm) | 60 X 60 X 25 |
| Voltage Rating (V) | 12 |
| Power Rating (W) | 1 |
| Nominal Speed (r/min) | 2480 |
| Maximum Airflow (CFM) | 14 |
| Noise Level (dB) | 20 |
| Bearings | Ball |
| Line Current (A) | 0.08 |
| Operating Input Voltage Range (V) | 8 to 13.8 |
| Supply Voltage VDC | 12V |
Детали
| Бренд | Orion Fans |
|---|
