Sunon

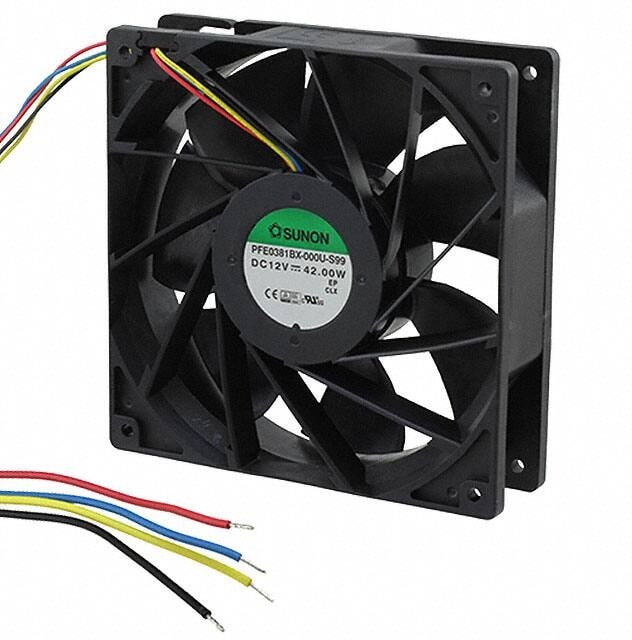

8005757223 PFE0381BX-000U-S99, Fan Tubeaxial 12VDC Square — 140mm L x 140mm H Ball 297.9 CFM (8.34m³/min) 4 Wire Leads Hirschmann
12990,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 140mm L x 140mm H Ball 297.9 CFM (8.34mВі/min) 4 Wire Leads
| Потребляемая мощность, Вт | 39.6 |
| Fan Type | Tubeaxial |
| Series | PFE-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 140×140 |
| Рабочее напряжение,В | 12 |
| Питание | 4pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart, PWM Control, Speed Sensor(Tach) |
| Noise | 70.3dB(A) |
| Approval Agency | CE, CUR, TUV, UL |
| Lifetime @ Temp. | 70000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-140mm L x 140mm H |
| Termination | 4 Wire Leads |
| Weight | 1.1 lbs(499.0 g) |
| Width | 38.00mm |
| Current Rating (Amps) | 3.30A |
| Static Pressure | 2.05 in H2O(510.6 Pa) |
| Частота вращения,об./мин. | 6800 |
| Производительность,м.куб./мин. | 297.9 |
| Video File | Sunon DR MaglevSunon Fans PF Series | Digi-Key Dai |
| Voltage Range | 10.2 ~ 13.2VDC |
| Environmental Information | http://www.sunon.com/uFiles/file/01_about%20sunon/ |
Детали
| Бренд | Sunon |
|---|
