Comair Rotron

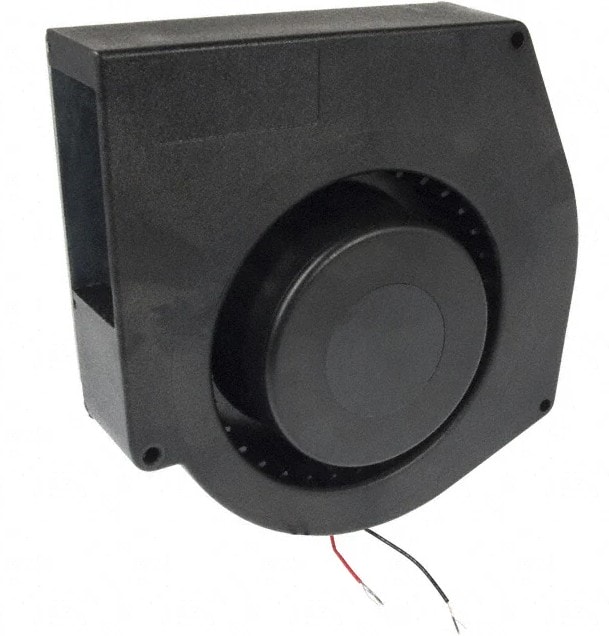

8005768026 19032183A, Fan Blower 24VDC Rectangular/Rounded — 160.7mm L x 161.3mm H Ball 60.0 CFM (1.68m³/min) 2 Wire Leads Hirschmann
16420,00 ₽
Описание
Fan Blower 24VDC Rectangular/Rounded — 160.7mm L x 161.3mm H Ball 60.0 CFM (1.68mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 30 |
| Fan Type | Blower |
| Series | Spinnaker-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 160.7×161.3 |
| Рабочее напряжение,В | 24 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6560 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart, Locked Rotor Protection |
| Noise | 57.0dB(A) |
| Approval Agency | UL |
| Lifetime @ Temp. | 62000 Hrs @ 50В°C |
| Material — Blade | Plastic |
| Material — Frame | Zinc |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Rectangular/Rounded-160.7mm L x 161.3mm H |
| Termination | 2 Wire Leads |
| Weight | 2.1 lbs(952.5 g) |
| Width | 50.20mm |
| Current Rating (Amps) | 1.25A |
| Static Pressure | 1.1 in H2O(274.0 Pa) |
| Частота вращения,об./мин. | 2500 |
| Производительность,м.куб./мин. | 60 |
| Voltage Range | 12 ~ 28VDC |
Детали
| Бренд | Comair Rotron |
|---|
