Comair Rotron

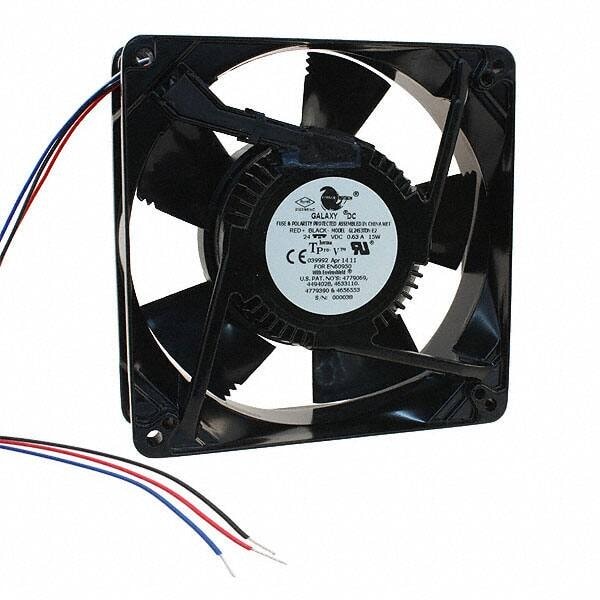

8005777089 19039992A, Fan Tubeaxial 24VDC Square — 127mm L x 127mm H Ball 150.0 CFM (4.20m³/min) 3 Wire Leads Hirschmann
11570,00 ₽
Описание
Fan Tubeaxial 24VDC Square — 127mm L x 127mm H Ball 150.0 CFM (4.20mВі/min) 3 Wire Leads
| Потребляемая мощность, Вт | 15 |
| Fan Type | Tubeaxial |
| Series | Galaxy-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 127×127 |
| Рабочее напряжение,В | 24 |
| Питание | 3pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart, Fan Performance Sensor(FPS), Locked |
| Noise | 53.6dB(A) |
| Approval Agency | CSA, TUV, UL |
| Lifetime @ Temp. | 82500 Hrs @ 50В°C |
| Material — Blade | Plastic |
| Material — Frame | Zinc |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-127mm L x 127mm H |
| Termination | 3 Wire Leads |
| Width | 38.10mm |
| Current Rating (Amps) | 0.630A |
| Частота вращения,об./мин. | 3200 |
| Производительность,м.куб./мин. | 150 |
| Voltage Range | 12 ~ 28VDC |
Детали
| Бренд | Comair Rotron |
|---|
