NMB Technologies

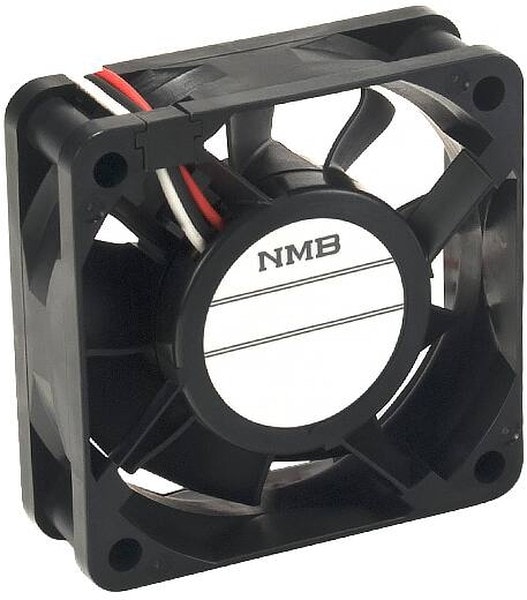

8005793044 06020SA-12N-AL-00, Fan Tubeaxial 12VDC Square — 60mm L x 60mm H Ball 20.5 CFM (0.574m³/min) 3 Wire Leads Hirschmann
2840,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 60mm L x 60mm H Ball 20.5 CFM (0.574mВі/min) 3 Wire Leads
| Потребляемая мощность, Вт | 1.08 |
| Fan Type | Tubeaxial |
| Series | 06020SA-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 60×60 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 20 |
| Питание | 3pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| RoHS Status | RoHS Compliant |
| Features | Locked Rotor Sensor |
| Noise | 30.5dB |
| Lifetime @ Temp. | 40000 Hrs @ 60В°C |
| Material — Blade | Plastic |
| Material — Frame | Plastic |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-60mm L x 60mm H |
| Termination | 3 Wire Leads |
| Weight | 0.123 lb(55.79 g) |
| Width | 20.00mm |
| Current Rating (Amps) | 0.090A |
| Static Pressure | 0.21 in H2O(52.3 Pa) |
| Частота вращения,об./мин. | 4400 |
| Производительность,м.куб./мин. | 20.5 |
| Voltage Range | 6 ~ 13.8VDC |
Детали
| Бренд | NMB Technologies |
|---|
