Orion Fans

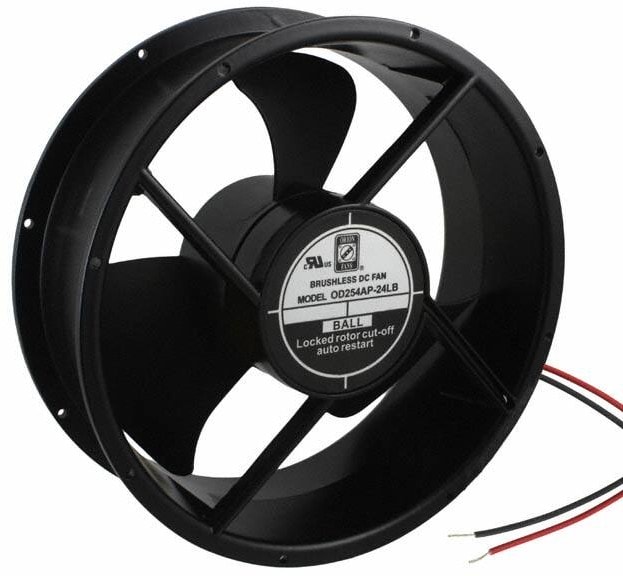

8005841332 OD254AP-24LB, Fan Tubeaxial 24VDC Round — 254mm Dia Ball 550.0 CFM (15.40m³/min) 2 Wire Leads Hirschmann
29670,00 ₽
Описание
Fan Tubeaxial 24VDC Round — 254mm Dia Ball 550.0 CFM (15.40mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 13 |
| Fan Type | Tubeaxial |
| Series | OD254-> |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 89 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart |
| Noise | 39.0dB |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 40000 Hrs @ 60В°C |
| Material — Blade | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Material — Frame | Aluminum |
| Operating Temperature | -4 ~ 167В°F(-20 ~ 75В°C) |
| Size / Dimension | Round-254mm Dia |
| Termination | 2 Wire Leads |
| Width | 89.00mm |
| Current Rating (Amps) | 0.520A |
| Static Pressure | 0.37 in H2O(92.2 Pa) |
| Частота вращения,об./мин. | 1500 |
| Производительность,м.куб./мин. | 550 |
| Шум, дБA | 39.4 |
| Voltage Range | 16 ~ 27VDC |
Детали
| Бренд | Orion Fans |
|---|
