Mechatronics

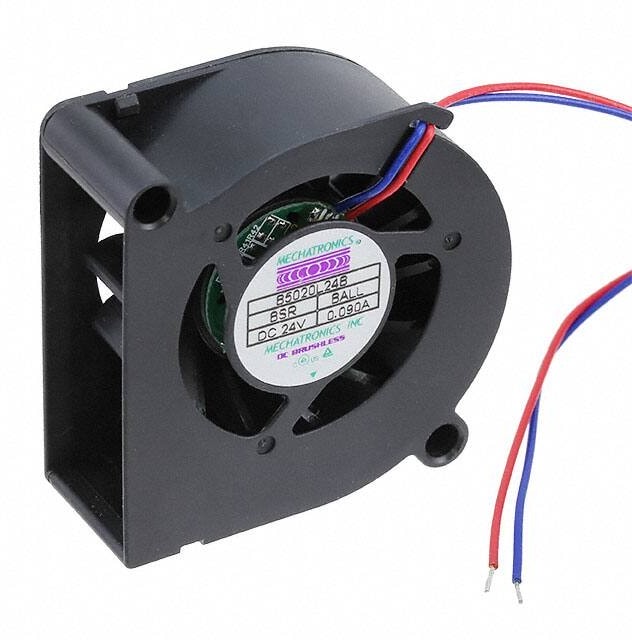

8005854575 B5020L24B-BSR, Fan Blower 24VDC Square/Rounded — 51mm L x 50mm H Ball 6.0 CFM (0.168m³/min) 2 Wire Leads Hirschmann
2980,00 ₽
Описание
Fan Blower 24VDC Square/Rounded — 51mm L x 50mm H Ball 6.0 CFM (0.168mВі/min) 2 Wire Leads
| Вес, г | 63 |
| Fan Type | Blower |
| Noise Level | 29 dB |
| Series | B5020-> |
| Special Features | Tachometer1363 |
| Тип подшипника | Ball |
| Размеры рамы,мм | 51×50 |
| Рабочее напряжение,В | 24 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6560 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | RoHS Compliant |
| Features | Thermal Overload Protector(TOP) |
| Noise | 29.0dB(A) |
| Power Rating | N/A |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Operating Temperature | N/A |
| Size / Dimension | Square/Rounded-51mm L x 50mm H |
| Termination | 2 Wire Leads |
| Weight | 0.049 lb(22.23 g) |
| Width | 20.00mm |
| Category | DC Blower1342 |
| COO | ID |
| Housing Material | Polybutylene Terephthalate1345 |
| Maximum Airflow | 6 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 24 V |
| Единица измерения | шт |
| Current Rating (Amps) | 0.090A |
| Static Pressure | 0.2 in H2O(49.8 Pa) |
| Частота вращения,об./мин. | 4000 |
| Производительность,м.куб./мин. | 6 |
Детали
| Бренд | Mechatronics |
|---|
